General Procedures: Check

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Valve Cover LH  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
  4. Refer to: Valve Cover RH  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
  5. CAUTION:
    • Rotate the engine clockwise until the camshafts are positioned as shown.
    • Do not rotate the crankshaft counterclockwise. The timing chains may bind causing engine damage.
    • Camshaft lobes must be 180 degrees away from each valve tappet or valve clearance will be incorrect.
    NOTE: Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.

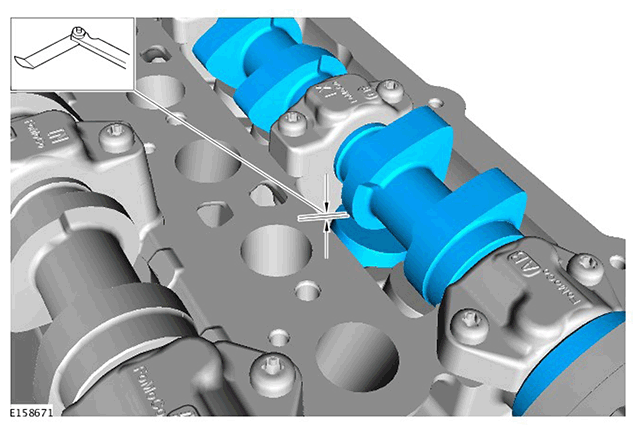

    G11415466
    • Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.
    1. Repeat for the remaining valve tappets.
