Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

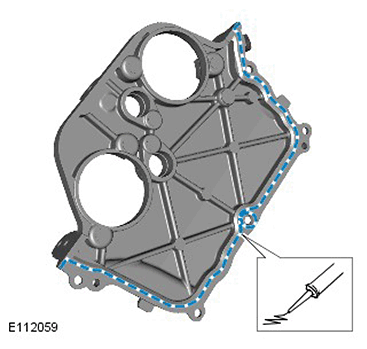

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

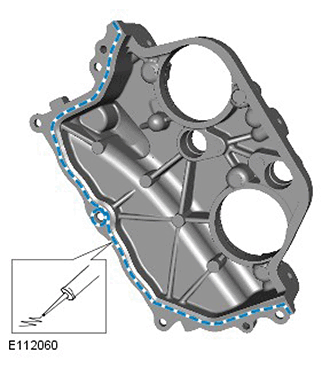

- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

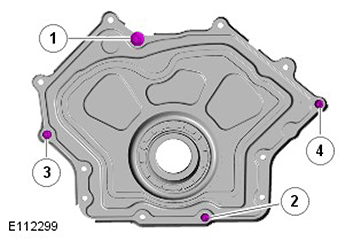

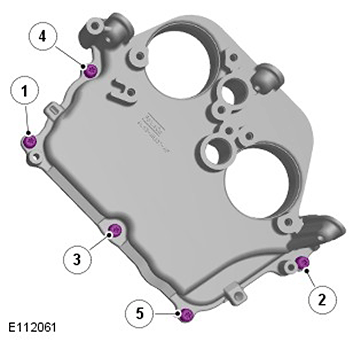

NOTE: Tighten the bolts in the indicated sequence.

Torque Specification: 12 Nm

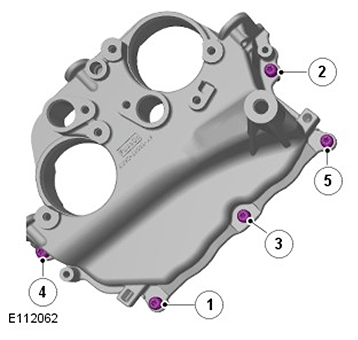

NOTE: Tighten the bolts in the indicated sequence.

Torque Specification: 12 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

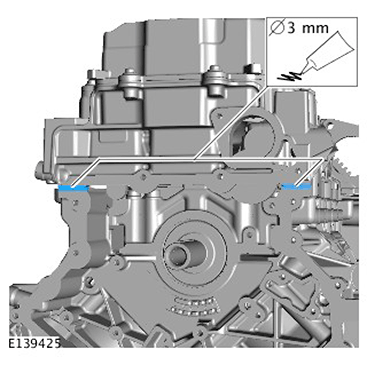

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Install the bolts, but do not tighten fully at this stage.

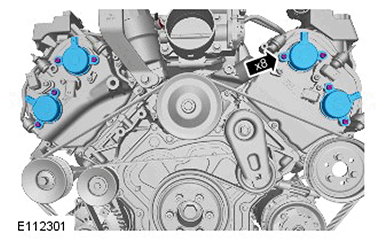

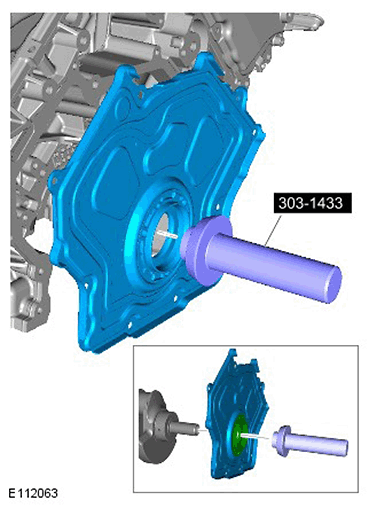

Special Tool(s): 303-1433

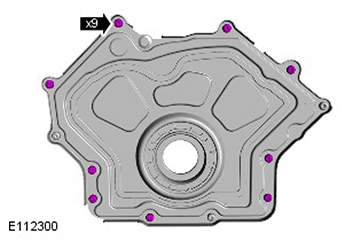

NOTE: Tighten the bolts in the indicated sequence.
- Torque Specification:
  M8 20 Nm

  M6 12 Nm

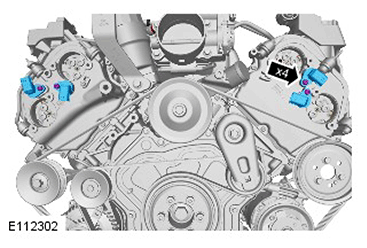

Remove the special tools.
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 12 Nm

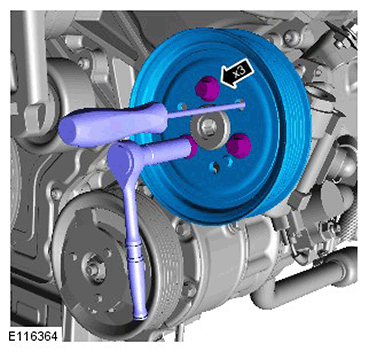

Torque Specification: 25 Nm
Refer to: Crankshaft Pulley (V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Right Valve Cover (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Left Valve Cover (Engine - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: ELECTRIC THERMOSTAT (G1772758) (V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Accessory Drive Belt Tensioner (- V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Accessory Drive Belt (- V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
