Removal And Installation: Installation
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

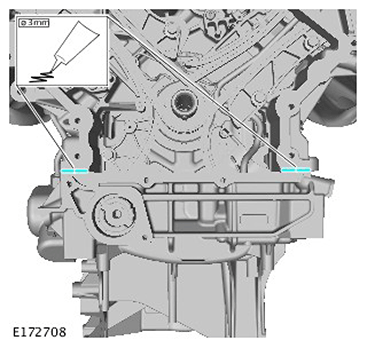

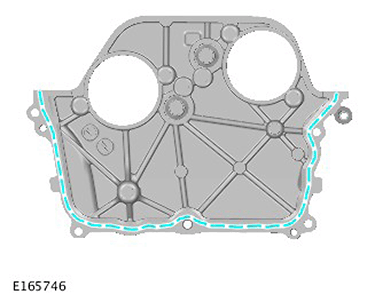

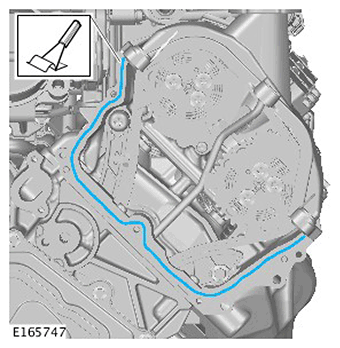

Apply RTV sealant (Loctite 5901G) to the areas shown.
-

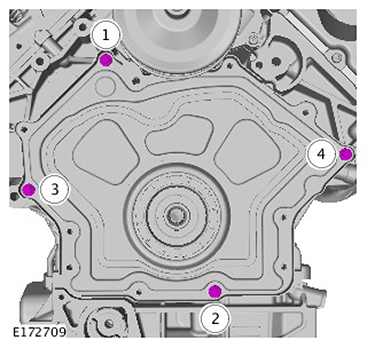

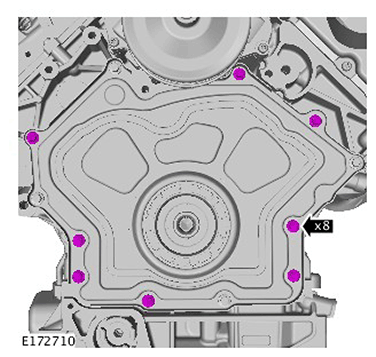

CAUTION: Make sure that a new component is installed.NOTE: Tighten the retaining bolts in the indicated sequence.
Tighten the lower timing cover bolts within 7 minutes.
Torque Specification: 12 Nm
Tighten the lower timing cover bolts within 7 minutes.
Torque Specification: 12 Nm
-

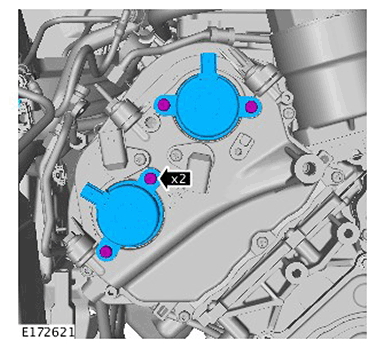

NOTE: Lubricate the O-ring seal with clean engine oil.
Torque Specification: 12 Nm
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
-
CAUTION: Take extra care not to damage the seal when installing the component.
-
NOTE: Tighten the retaining bolts in the indicated sequence.
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 10 Nm
-

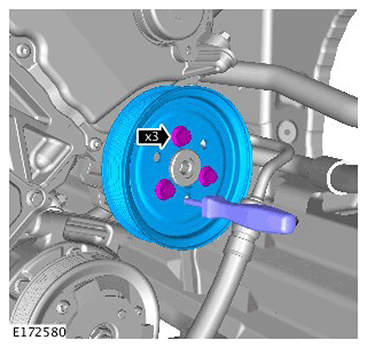

CAUTION: Using a suitable tool, lock the component.
Torque Specification: 25 Nm
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

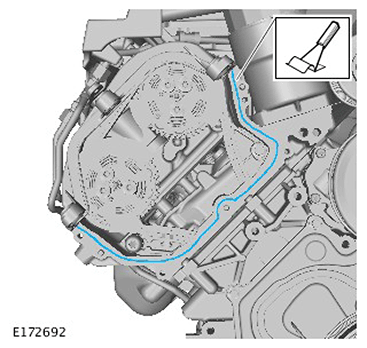

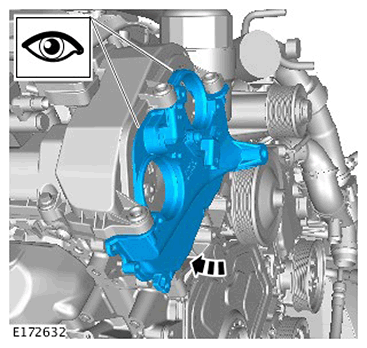

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
-

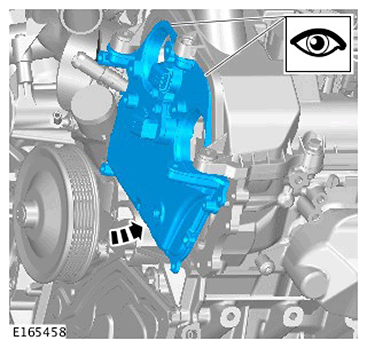

CAUTION: Take extra care not to damage the seal when installing the component.
-

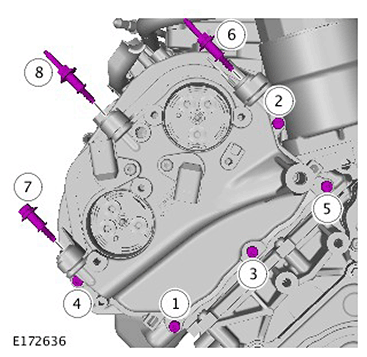

NOTE: Tighten the retaining bolts in the indicated sequence.
13
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 10 Nm
Torque Specification: 48 Nm
-
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

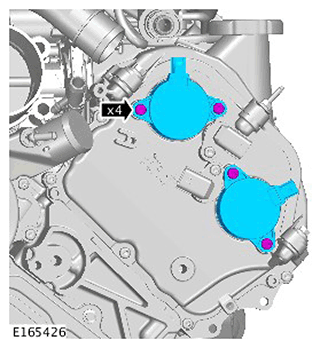

Torque Specification: 10 Nm
-
CAUTION:
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts finger-tight at this stage.

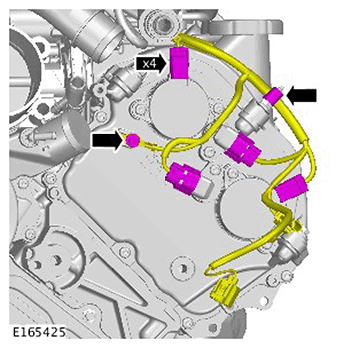

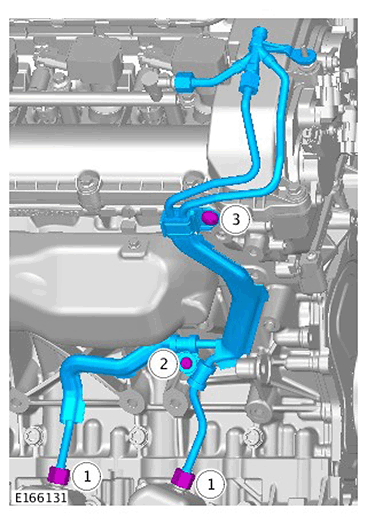

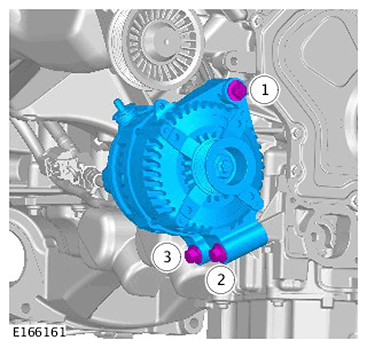

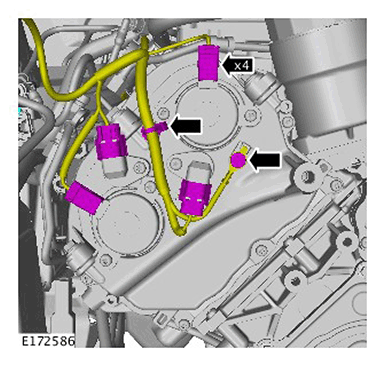

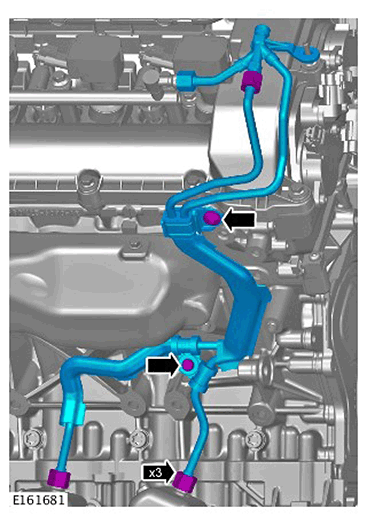

NOTE: Remove and discard the blanking caps. Torque Specification:
Unions (1) 21 Nm
M6 (2) 11 Nm
M8 (3) 25 Nm
Torque Specification: 48 Nm

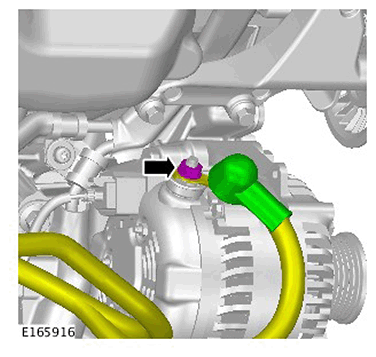

Torque Specification: 12 Nm

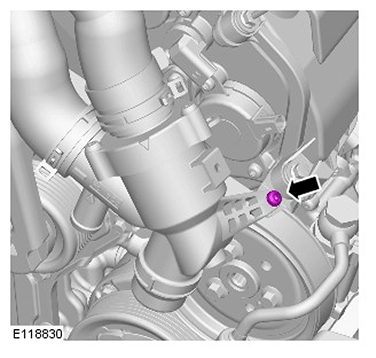

Torque Specification: 25 Nm

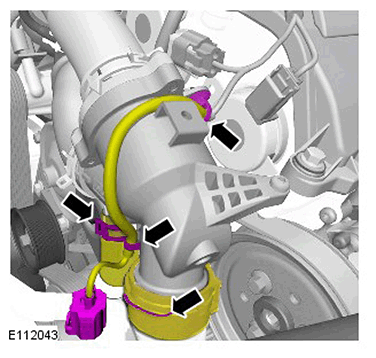

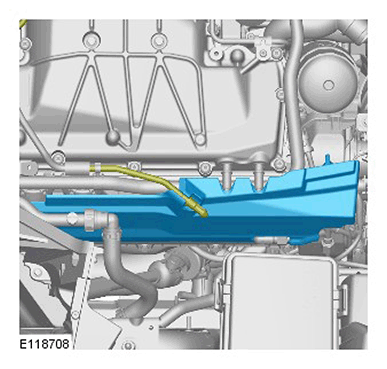

- Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
-
CAUTION: Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
Install the RH front wheel and tire.
Torque Specification: 140 Nm

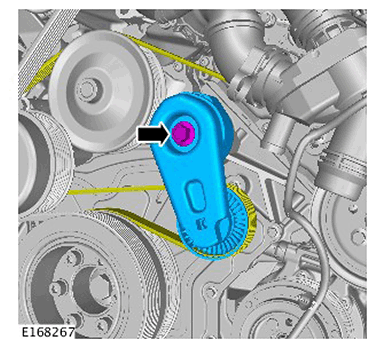

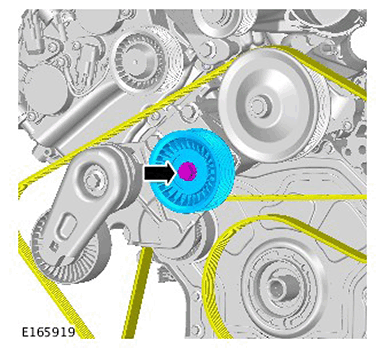

Install the FEAD belt.
Torque Specification: 25 Nm

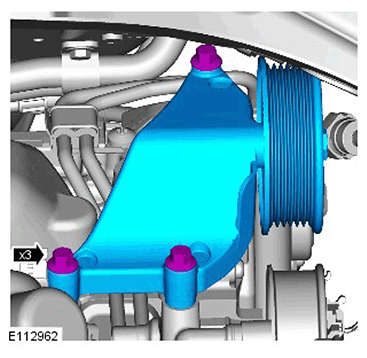

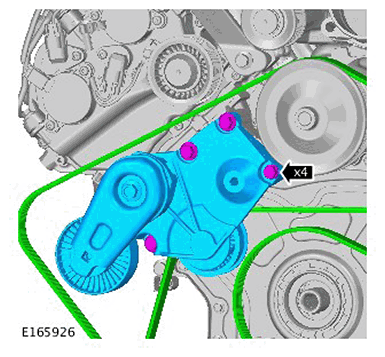

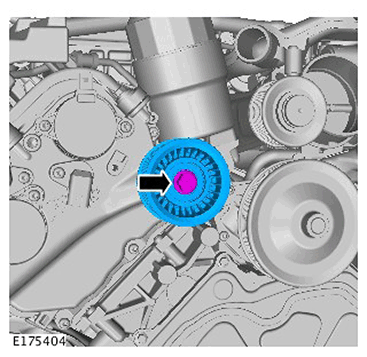

Torque Specification: 48 Nm
Torque Specification: 48 Nm
- Refer to: Crankshaft Pulley (V6 S/C 3.0L Petrol, Removal and Installation).

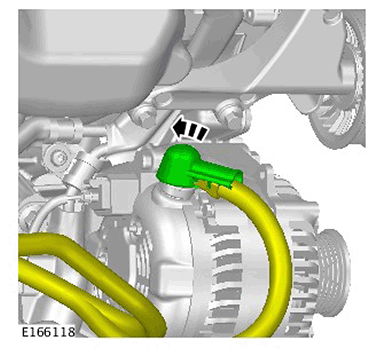

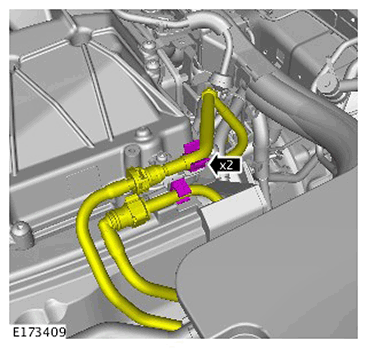

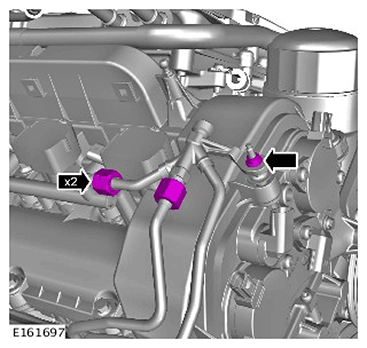

Torque Specification:
Unions 21 Nm
M5 nut 6 Nm
-
CAUTION:
- Remove and discard the blanking caps.

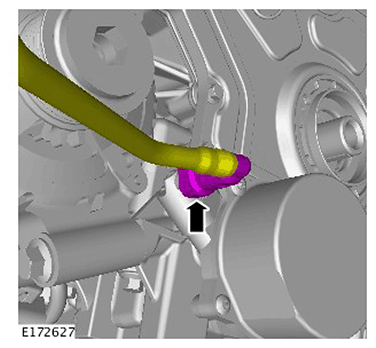

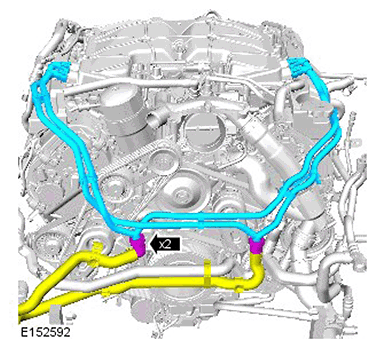

- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

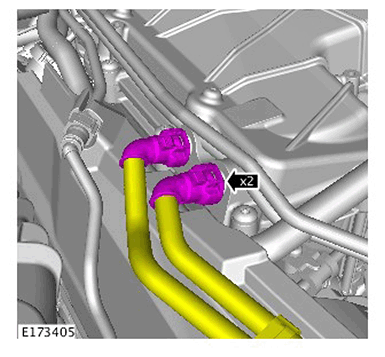

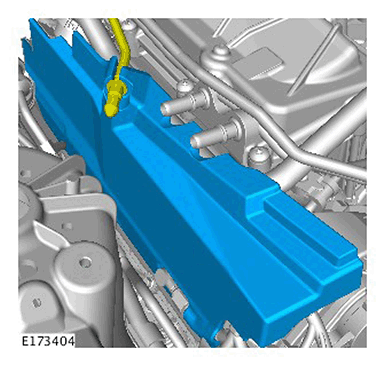

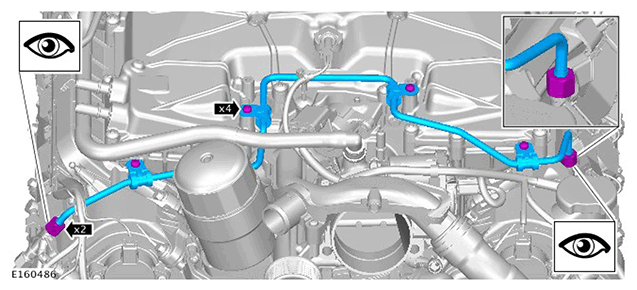

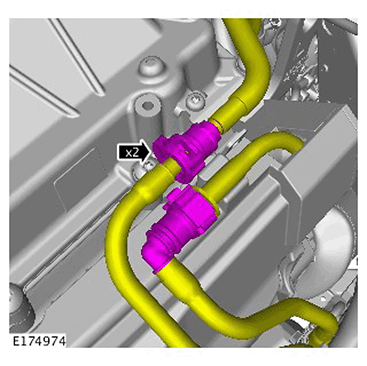

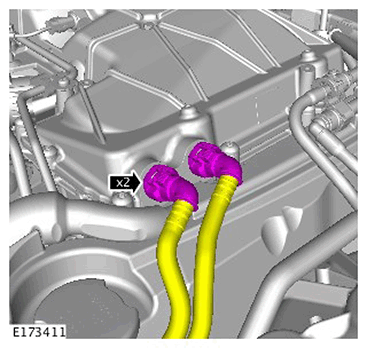

Torque Specification:
Unions 21 Nm
Bolts 12 Nm
-

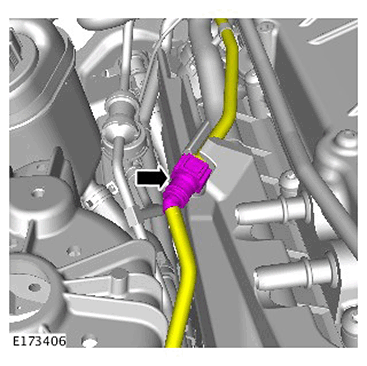

NOTE: Remove and discard the blanking caps.

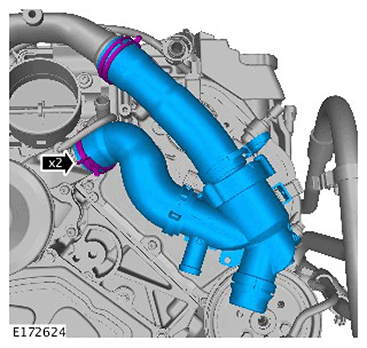

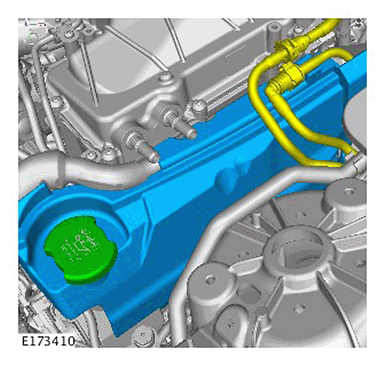

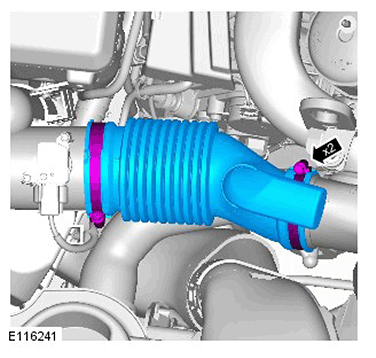

- Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
- Refer to: Cooling System Partial Draining and Vacuum Filling (V6 S/C 3.0L Petrol, General Procedures).

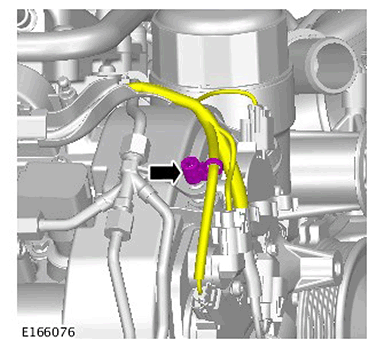

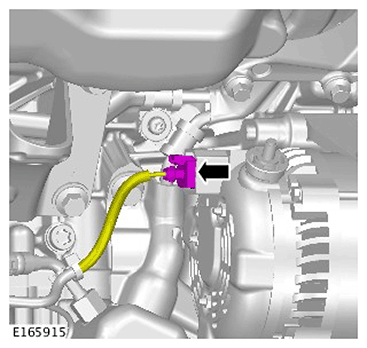

- Connect the battery ground cable.
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
