Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.

All vehicles

  1. Refer to: Air Conditioning System Recovery, Evacuation and Charging (Climate Control System - General Information, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

    Right-hand drive vehicles

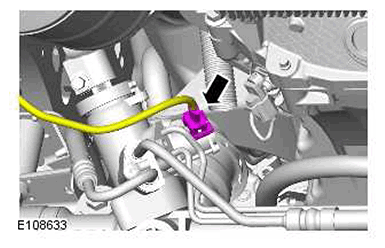

  4. G11415674
  5. NOTE: Note the fitted position.

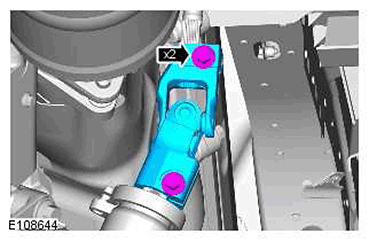

    G11415675

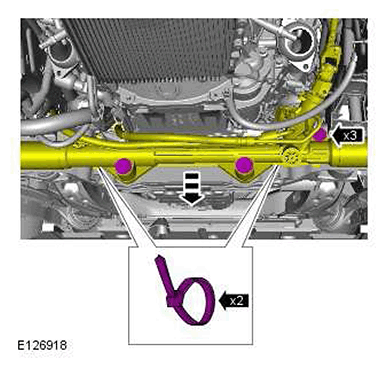

  6. G11415676
    • Support and release the power steering rack.

    All vehicles

  7. CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

    Support the engine with the lifting equipment.

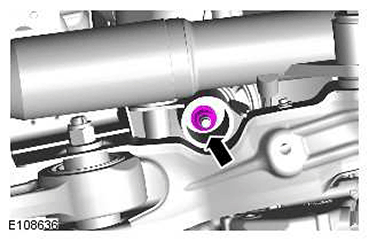

  8. G11415677
    • Remove and discard the nut.

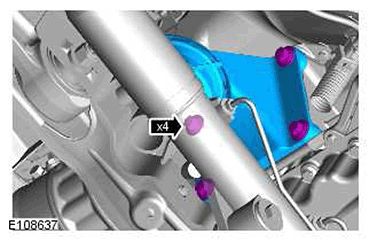

  9. G11415678
  10. NOTE: Do not disassemble further if the component is removed for access only.

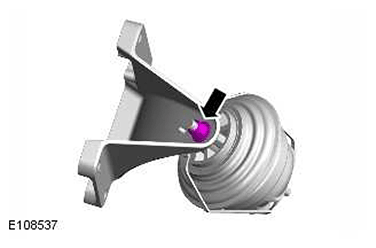

    G11415679
    • Remove and discard the nut.
