Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Engine Oil Draining and Filling  (Engine - V6 S/C 3.0L Petrol, General Procedures).
  4. Refer to: Crankshaft Pulley  (V6 S/C 3.0L Petrol, Removal and Installation).
  5. Refer to: DIFFERENTIAL DRAINING AND FILLING (Front Drive Axle/Differential, General Procedures).
  6. Refer to: Engine - AWD  (Engine - V6 S/C 3.0L Petrol, Removal).
  7. NOTE: Remove and discard the O-ring seal.

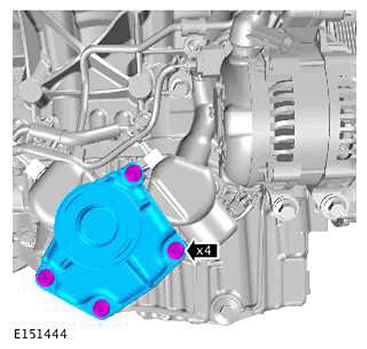

    G11415794

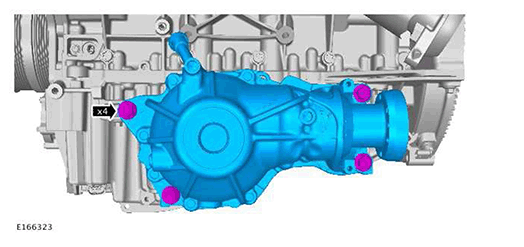

  8. G11415795
  9. CAUTION: Do not carry out this step if a new differential is to be installed.

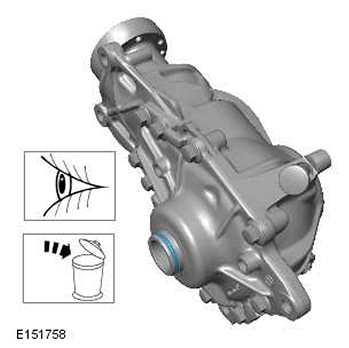

    G11415796

    Remove and discard the O-ring seal.

  10. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.

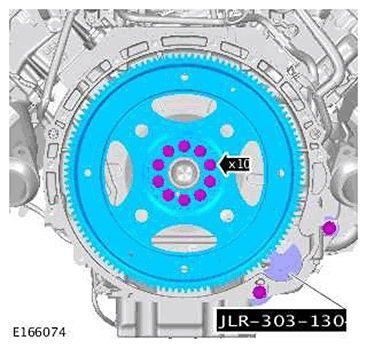

    G11415797

    Special Tool(s):  JLR-303-1304

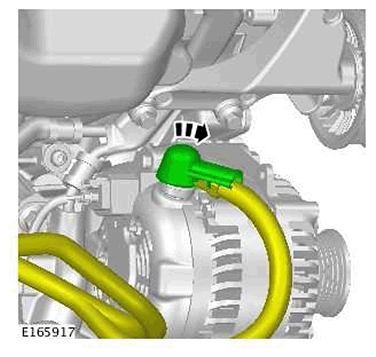

  11. G11415798

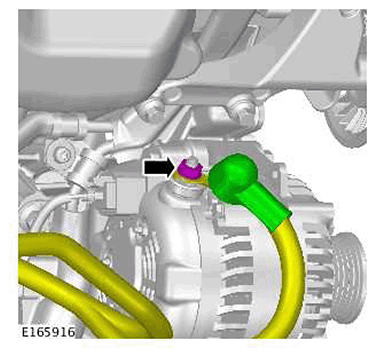

  12. G11415799

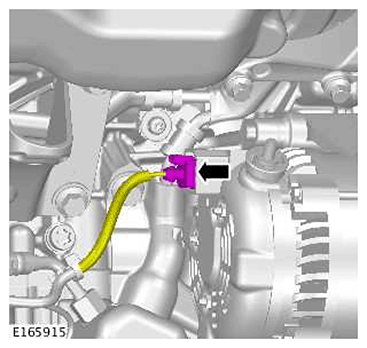

  13. G11415800

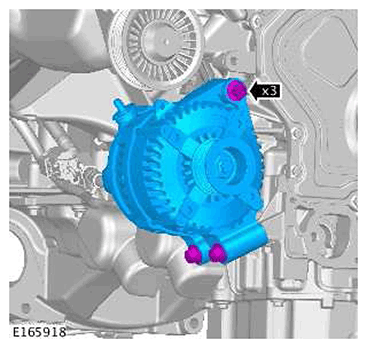

  14. G11415801
  15. G11415802

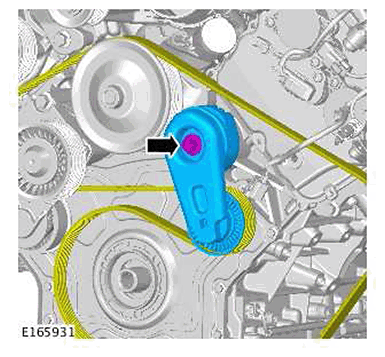

  16. G11415803

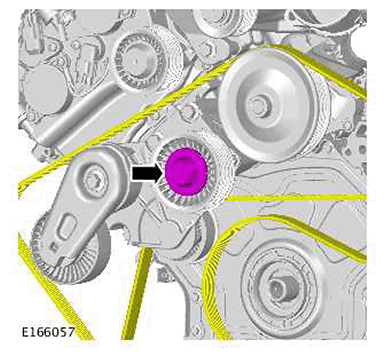

  17. G11415804

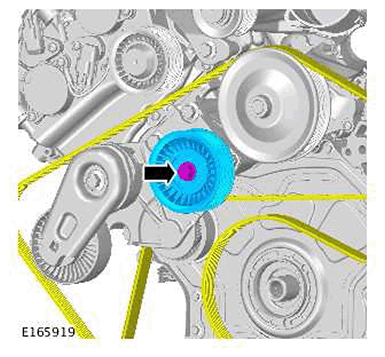

  18. G11415805

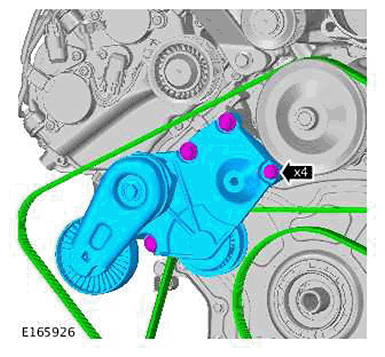

  19. G11415806

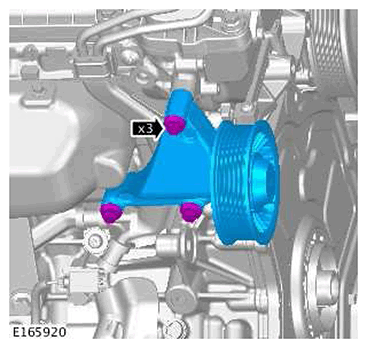

  20. G11415807

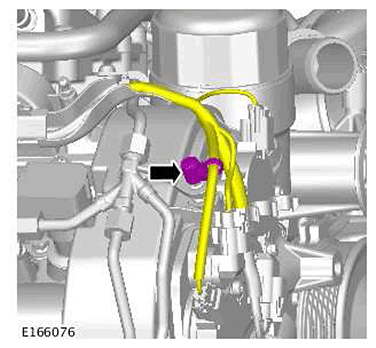

  21. G11415808
  22. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.

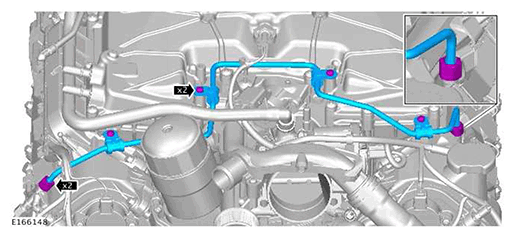

    G11415809
  23. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.

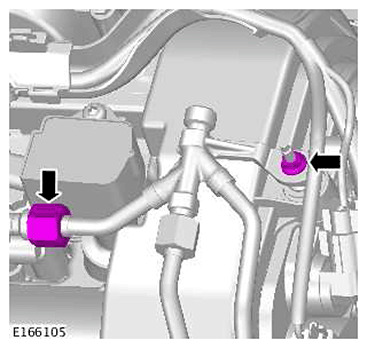

    G11415810

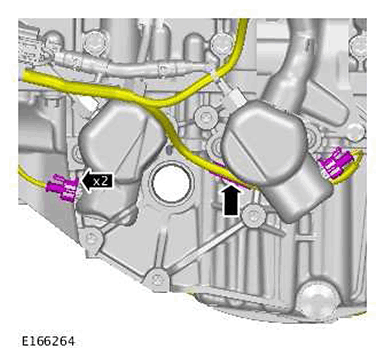

  24. G11415811

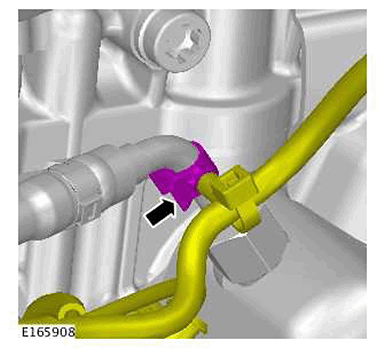

  25. G11415812

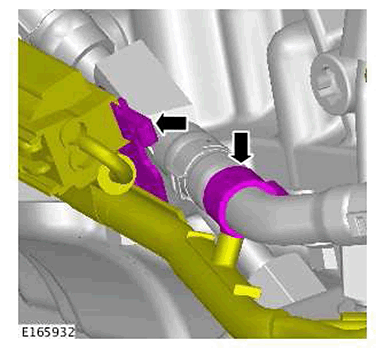

  26. G11415813

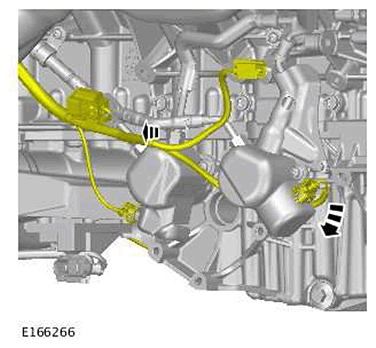

  27. G11415814

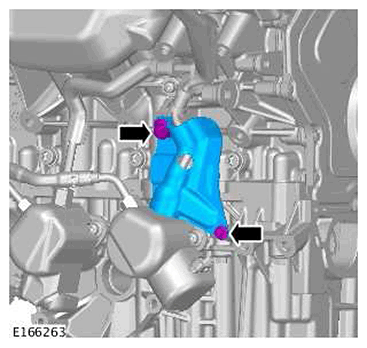

  28. G11415815

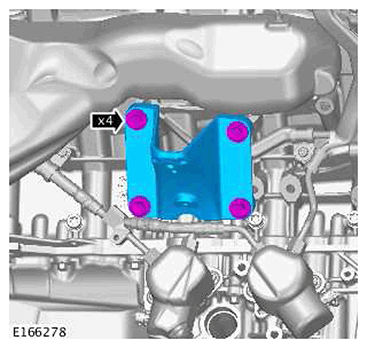

  29. G11415816

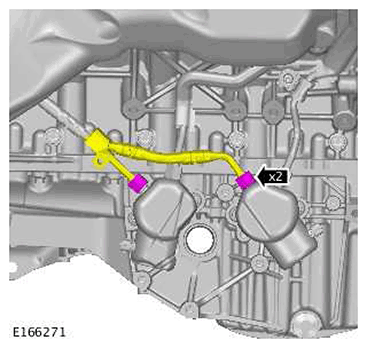

  30. G11415817
  31. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

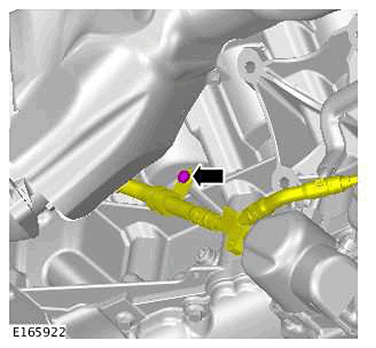

    G11415818
  32. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Discard the fuel pipes.

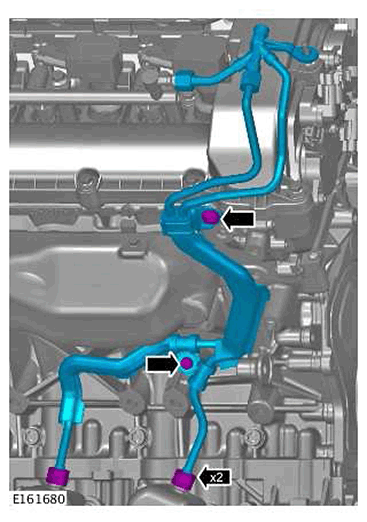

    G11415819

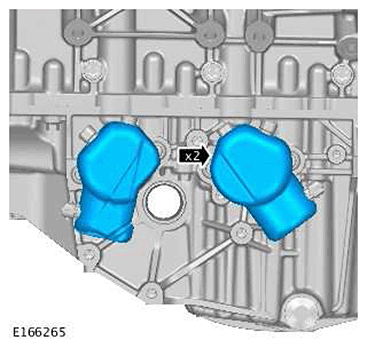

  33. G11415820
  34. CAUTION: Be prepared to collect escaping fluids.

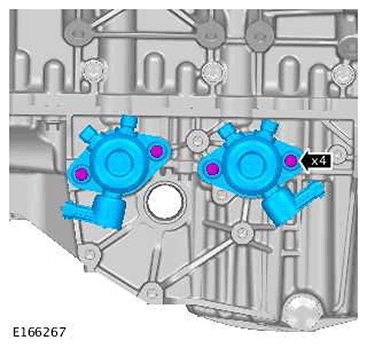

    G11415821
  35. CAUTION: Be prepared to collect escaping fluids.

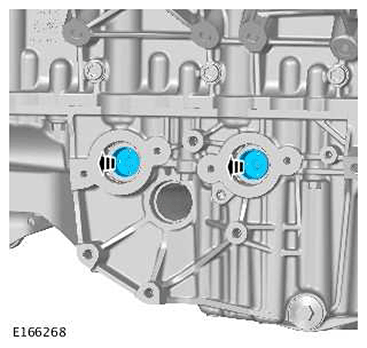

    G11415822

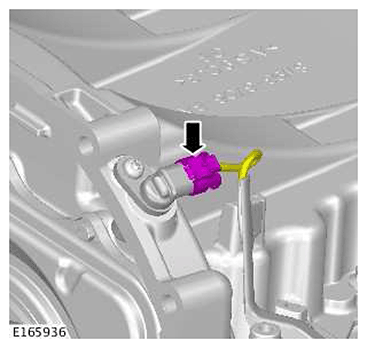

  36. G11415823

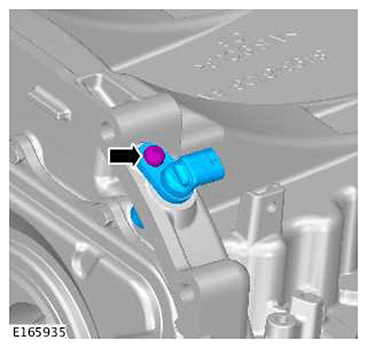

  37. G11415824

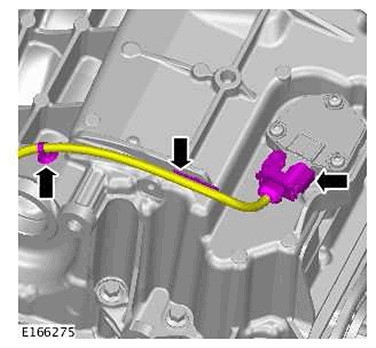

  38. G11415825

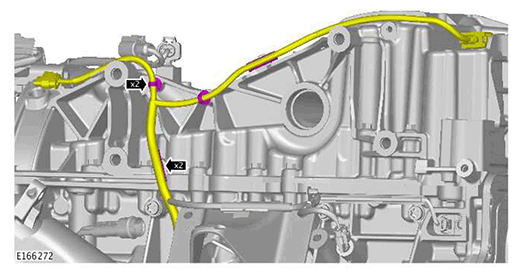

  39. G11415826
  40. CAUTION: Discard the component.

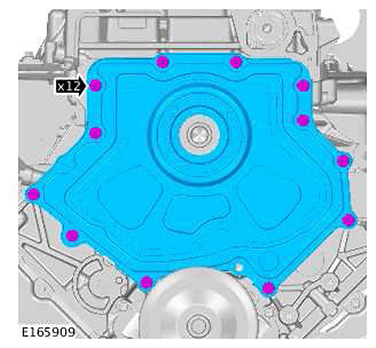

    G11415827

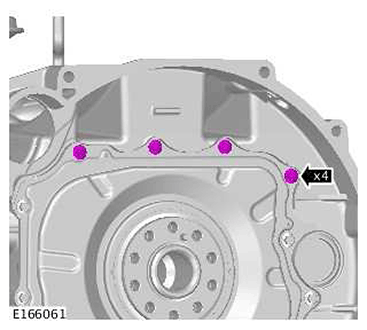

  41. G11415828

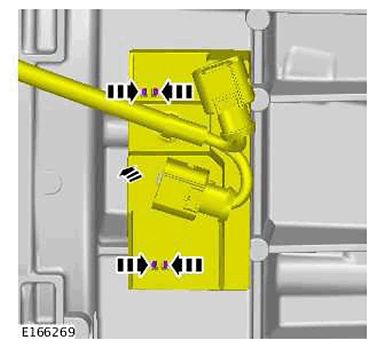

  42. G11415829

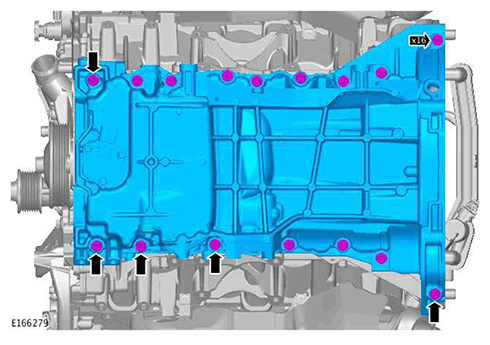

  43. G11415830

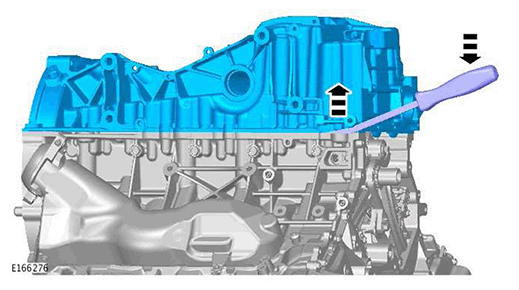

  44. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
    G11415831
  45. NOTE: Do not disassemble further if the component is removed for access only.

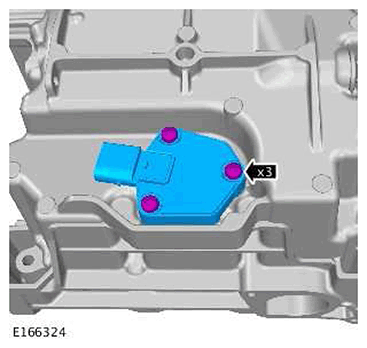

    G11415832
