Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

  4. Refer to: TRANSMISSION FLUID COOLER - V8 S/C 5.0L PETROL (G1574187) (Removal and Installation).

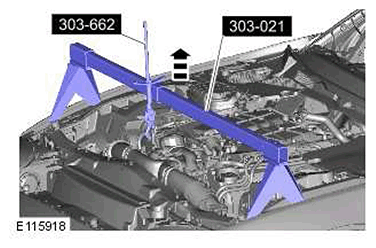

  5. G11415663
    • Special Tool(s):  303-662
    • Special Tool(s):  303-021

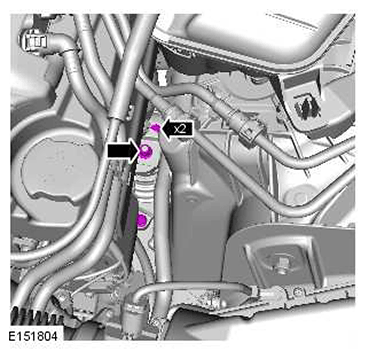

  6. G11415664

    Torque Specification: 48 Nm

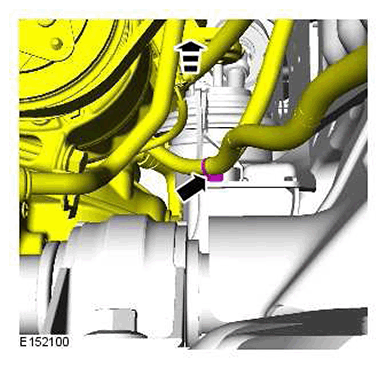

  7. G11415665

    Raise the engine clear of its LH mount.

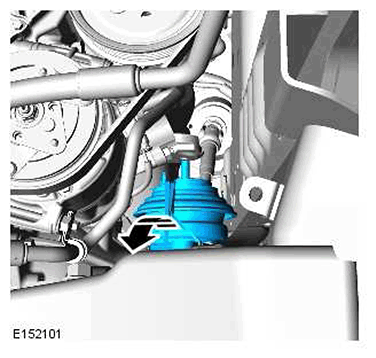

  8. G11415666
  9. NOTE: Do not disassemble further if the component is removed for access only.

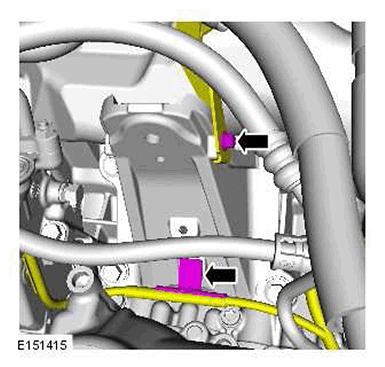

    G11415667

    Torque Specification: 10 Nm

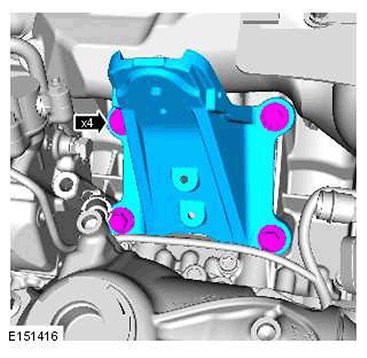

  10. G11415668

    Torque Specification: 40 Nm
