Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Install the bolts in the noted position.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    • Tighten the retaining bolts working diagonally.

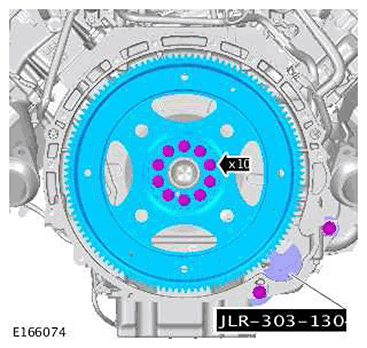

    G11415753

    To install, reverse the removal procedure.

    Special Tool(s):  JLR-303-1304

    Torque Specification:

    Stage 1: 45 Nm

    Stage 2: 90°

  2. Refer to: Transmission (Automatic Transmission/Transaxle - V6 S/C 3.0L Petrol, AWD, Installation). Refer to: Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, Installation).
