Special Tool(S)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
G11416403
 303-021
Engine support bracket
G11416404
 303-1435
Engine Lifting Brackets Rear
G11416405
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. NOTE: This step requires the aid of another technician.

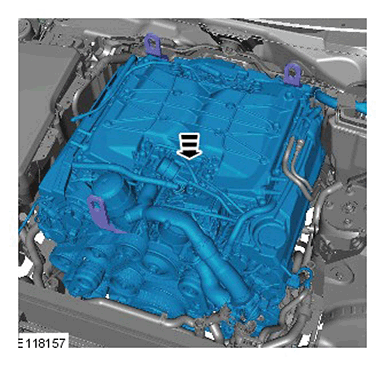

    G11416406

    Install the engine assembly.

    Special Tool(s):  303-1435, 303-1436

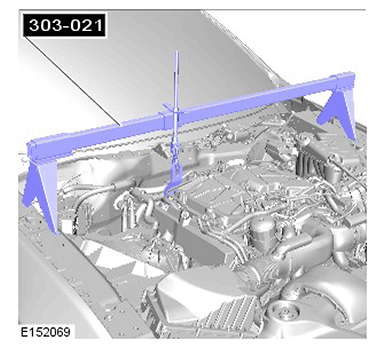

  2. G11416407

    Install the special tool.

    Special Tool(s):  303-021

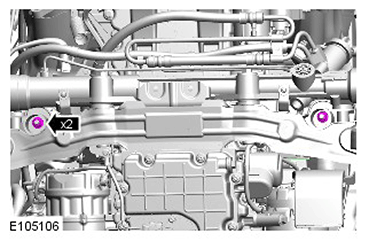

  3. G11416408

    Torque Specification: 45 Nm

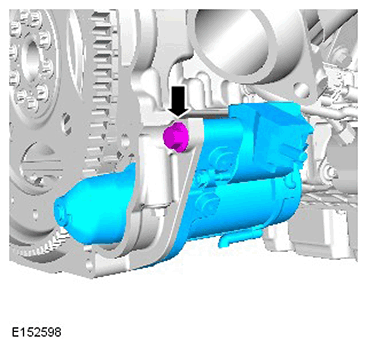

  4. G11416409

    Torque Specification: 48 Nm

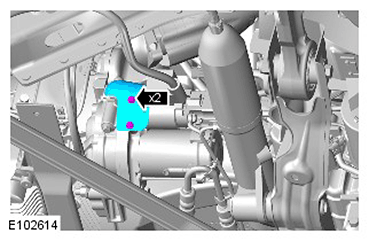

  5. G11416410

    Torque Specification: 6 Nm

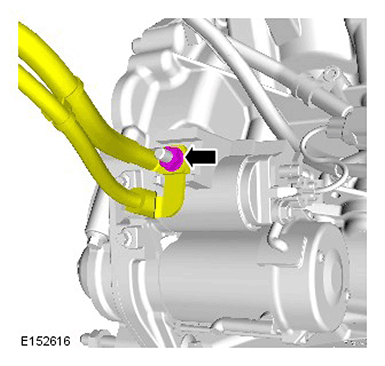

  6. G11416411

    Torque Specification: 12 Nm

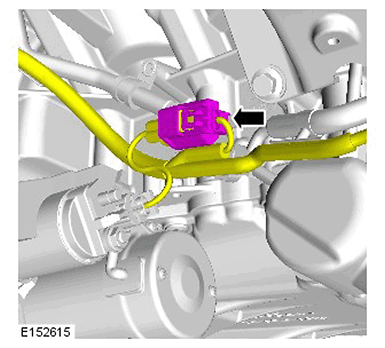

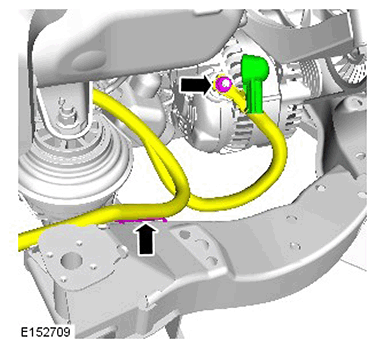

  7. G11416412
  8. G11416413

    Torque Specification: 12 Nm

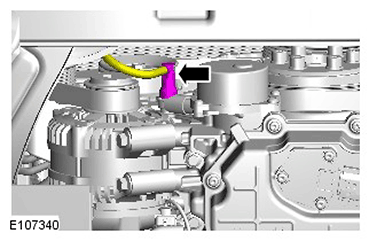

  9. G11416414

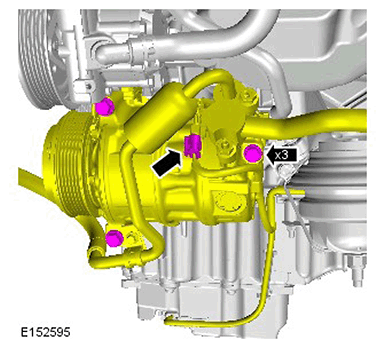

  10. G11416415

    Torque Specification: 25 Nm

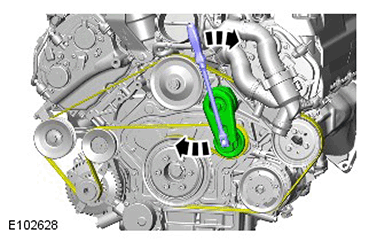

  11. G11416416

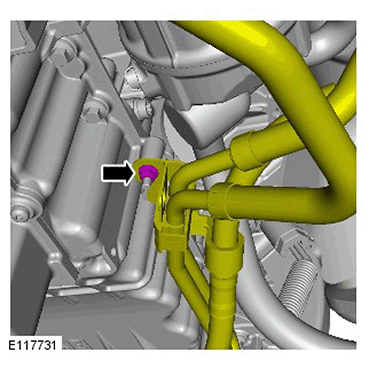

  12. G11416417

    Torque Specification: 12 Nm

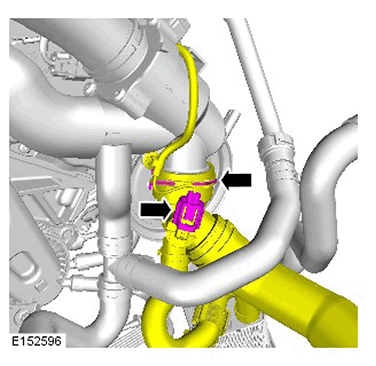

  13. G11416418

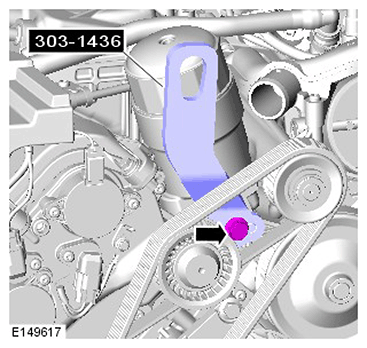

  14. G11416419

    Remove special tool.

    Special Tool(s):  303-1436

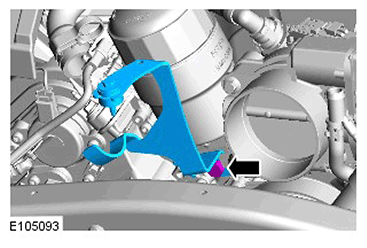

  15. G11416420

    Torque Specification: 25 Nm

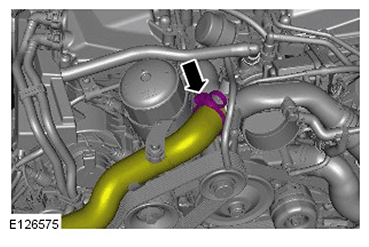

  16. G11416421

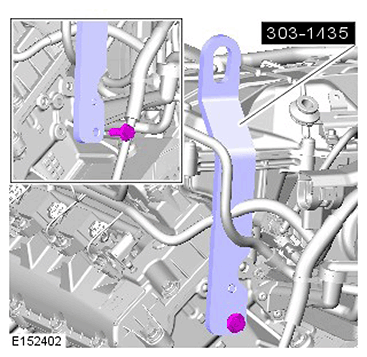

  17. G11416422

    Remove special tool.

    Special Tool(s):  303-1435

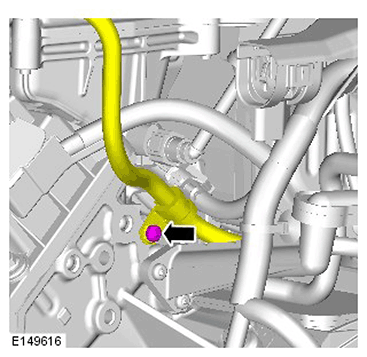

  18. G11416423

    Torque Specification: 12 Nm

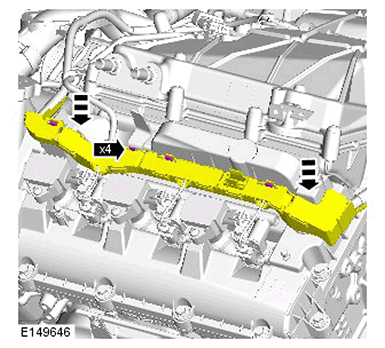

  19. G11416424

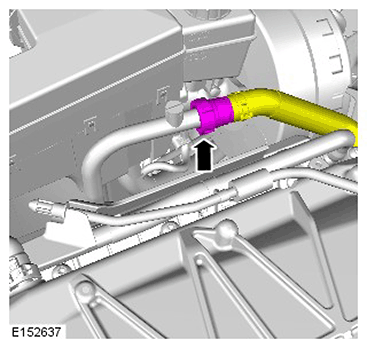

  20. G11416425

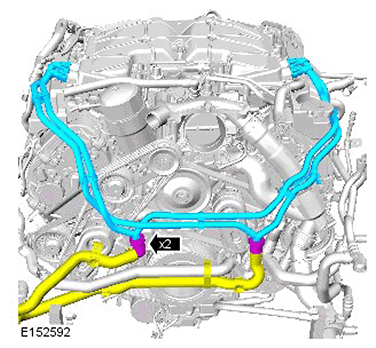

  21. G11416426

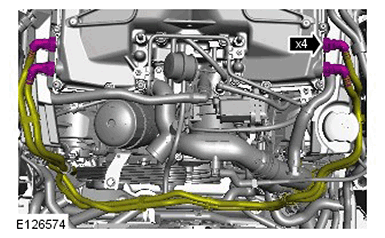

  22. G11416427

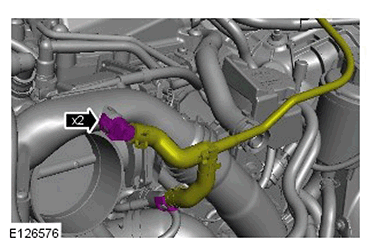

  23. G11416428

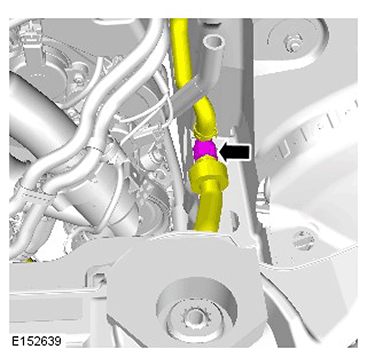

  24. G11416429

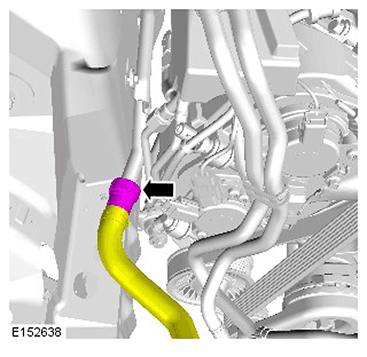

  25. G11416430

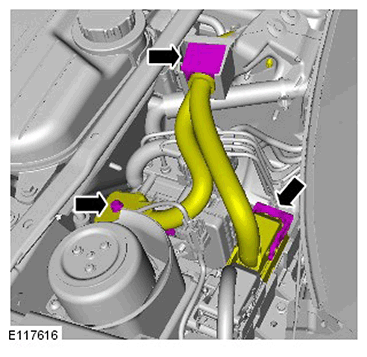

  26. NOTE: Left Hand illustration shown, Right Hand is similar.
    G11416431

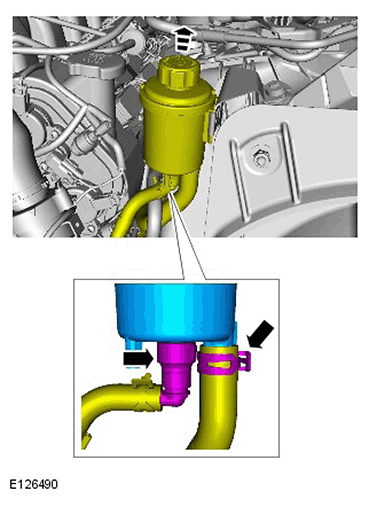

  27. CAUTION: Make sure that new sealing washers are installed.

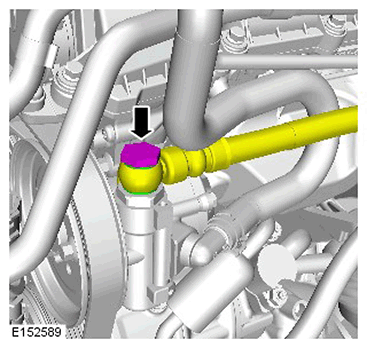

    G11416432

    Torque Specification: 25 Nm

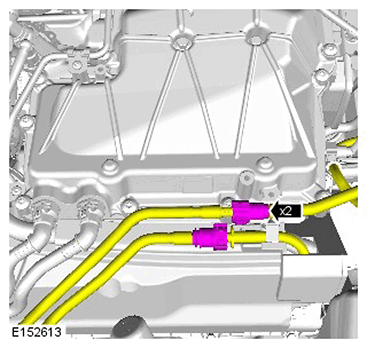

  28. G11416433

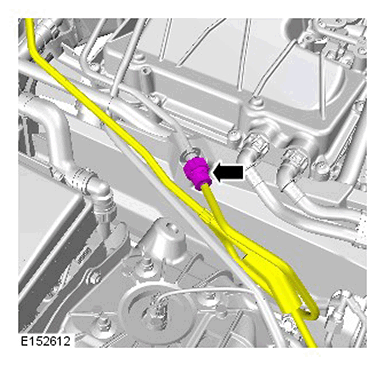

  29. G11416434
  30. G11416435
  31. Refer to: Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, Removal).
  32. Refer to: Cooling Fan Motor and Shroud (V6 S/C 3.0L Petrol, Removal and Installation).
  33. Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  34. Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  35. Refer to: Hood (Front End Body Panels, Removal and Installation).
  36. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  37. Refer to: Cooling System Partial Draining, Filling and Bleeding (V6 S/C 3.0L Petrol, General Procedures).
  38. Refer to: Power Steering System Bleeding (Steering System - General Information, General Procedures).
