Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Right Exhaust Manifold  (Engine - V6 S/C 3.0 L Petrol, Removal and Installation).

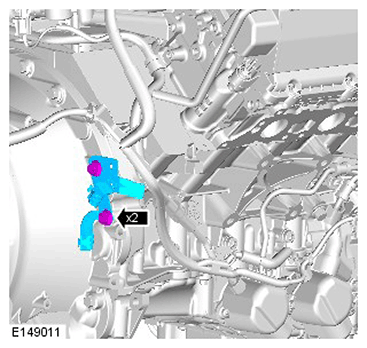

  4. G11416141

    Torque Specification: 48 Nm

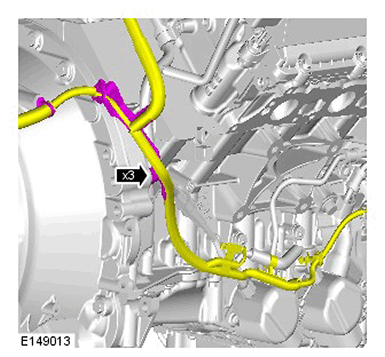

  5. G11416142

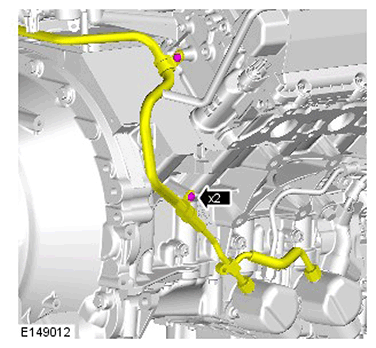

  6. G11416143

    Torque Specification: 12 Nm

  7. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

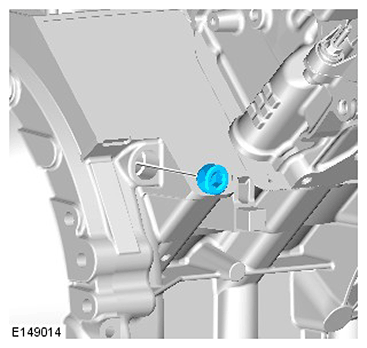

G11416144

Torque Specification:

Stage 1: 20 Nm

Stage 2: 180°
