Manifold Absolute Pressure Sensor (G1550200): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).

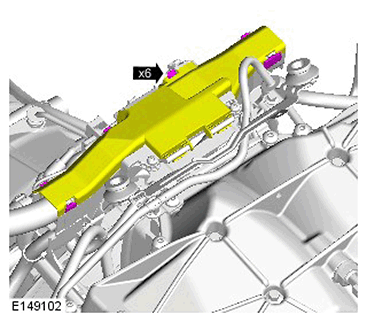

  3. G11417088

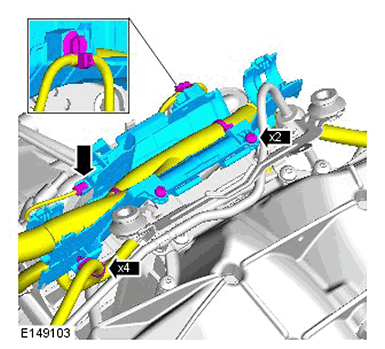

  4. G11417089

    Torque Specification: 10 Nm

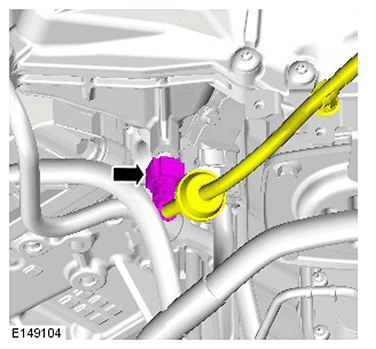

  5. G11417090

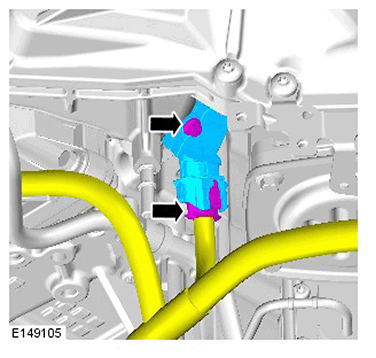

  6. G11417091

    Torque Specification: 5 Nm
