Emergency Park Position Release Lever - RWD (G1451592): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

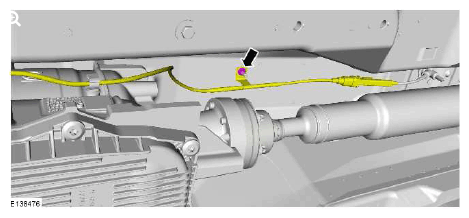

  4. G11423737

    Torque Specification: 7 Nm

  5. NOTE: Note the orientation of the component prior to removal.

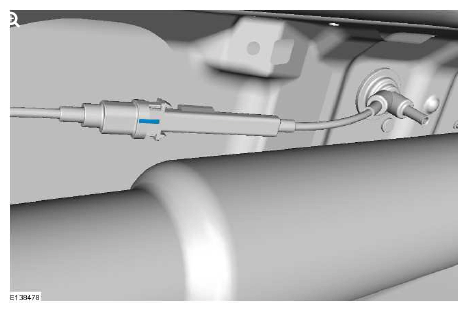

    G11423738

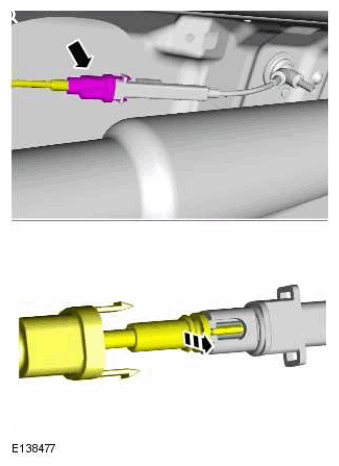

  6. G11423739

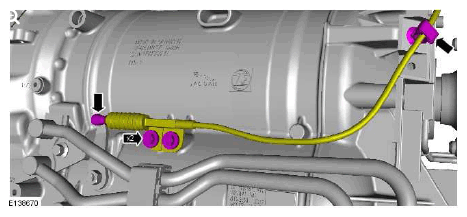

  7. G11423740

    Torque Specification: 10 Nm

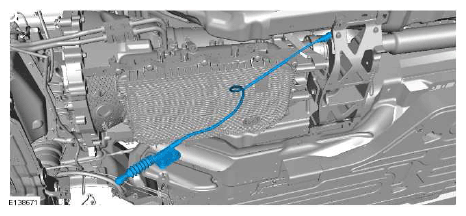

  8. G11423741
  9. Lower the vehicle.
  10. Refer to: Floor Console Side Trim Panel (Instrument Panel and Console, Removal and Installation).

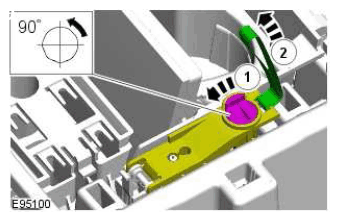

  11. G11423742

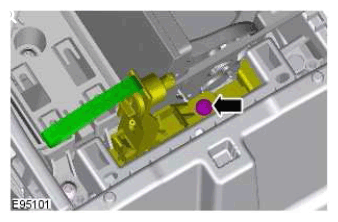

  12. G11423743

    Torque Specification: 3 Nm

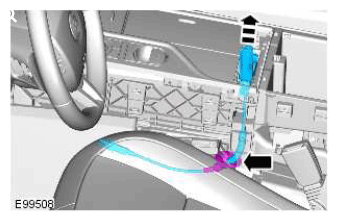

  13. G11423744
