Emergency Park Position Release Lever - AWD (G1653236): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to Front Driveshaft - AWD (Removal and Installation).

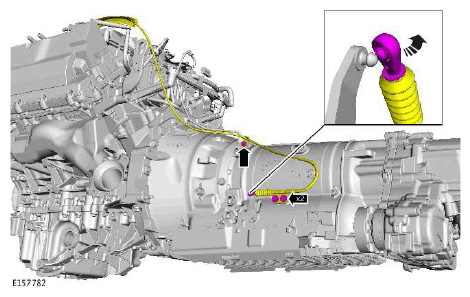

  3. G11423747

    Torque Specification: 11 Nm

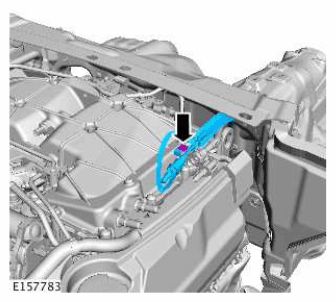

  4. G11423748

    Torque Specification: 9 Nm
