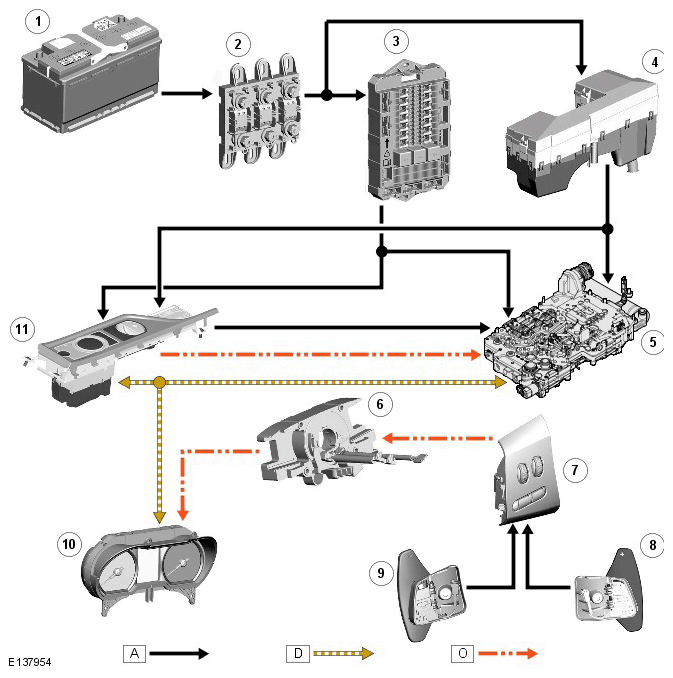

Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) (250 A megafuse) |
| 3 | Central Junction Box (CJB) |
| 4 | Engine Junction Box (EJB) |
| 5 | Transmission Control Module (TCM) |
| 6 | Clockspring |
| 7 | Steering wheel audio switches |
| 8 | Upshift paddle switch |
| 9 | Downshift paddle switch |
| 10 | Instrument cluster |
| 11 | JaguarDrive selector |
