Component Location - All Wheel Drive (AWD) Vehicles

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

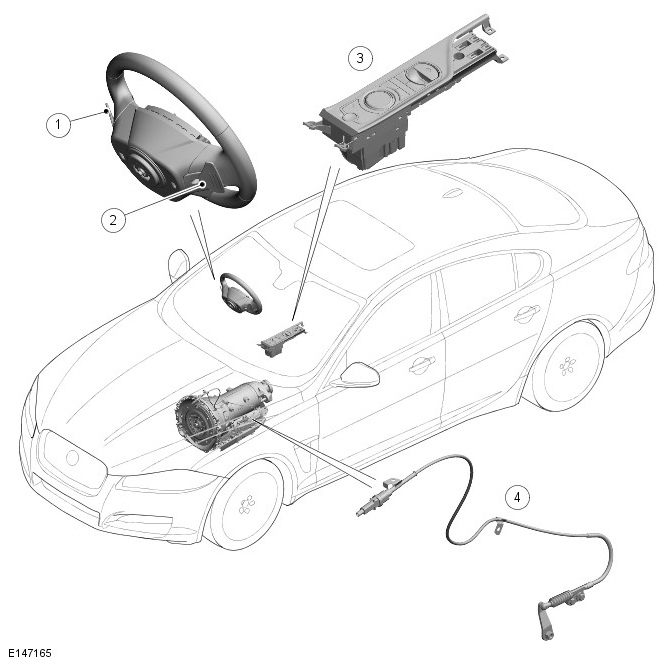

G11423720
ITEM DESCRIPTION
1 Upshift (+) paddle switch
2 Downshift (-) paddle switch
3 JaguarDrive selector
4 Emergency Park Release (EPR)
