Refrigerant Oil Adding - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1221325): Check

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- This step only needs to be carried out when removing the A/C compressor.
- Some variation in the illustrations may occur, but the essential information is always correct.

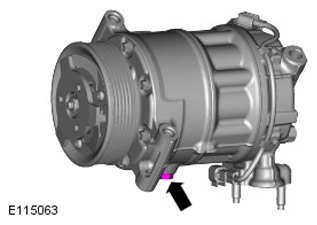

Torque Specification: 15 Nm
NOTE:
- This step only needs to be carried out when removing the A/C compressor.
- Some variation in the illustrations may occur, but the essential information is always correct.

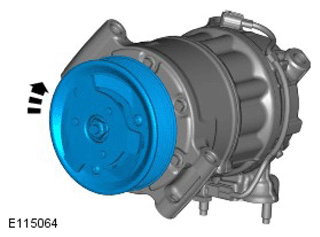

Rotate the A/C compressor shaft at least 6 to 8 turns when draining the refrigerant oil.
CAUTION:
- The refrigerant oil top-up quantity must not exceed the refrigerant oil fill quantity.
- If other A/C components are being renewed in addition to the A/C compressor, there is no need to top up with additional refrigerant oil, apart from filling the compressor.
Top up with the calculated quantity of new refrigerant oil. Refer to: Specifications .
