Air Conditioning (A/C) System Recovery, Evacuation And Charging (G1451549): Recharging

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The system must be vacuumed immediately before recharging commences. Delay between vacuuming and recharging is not permitted.
  1. Make sure the correct amount of oil is added to the A/C system before or during recharging.

    For additional information, refer to Specifications  .

  2. Recharge the A/C system to the correct specification. For additional information, refer to Specifications  .
  3. Disconnect the high and low pressure connections.

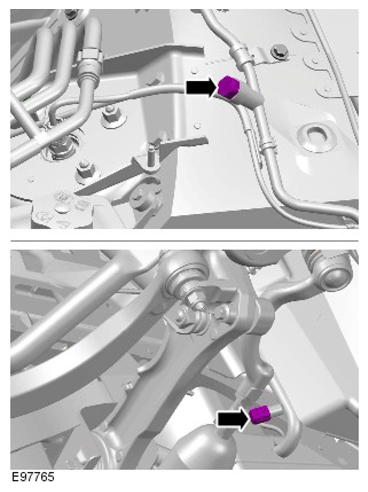

  4. G11424352

    Install and firmly tighten the caps that cover the high and low pressure connections.
