Rear Driveshaft - AWD (G1578768): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some illustrations may show the transmission removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Reder to: Exhaust System - AWD (309-00B Exhaust System - V6 S/C 3.0L Petrol, Removal and Installation).

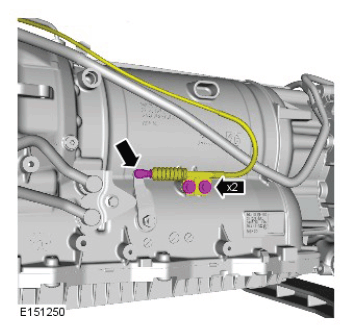

  4. G11420539

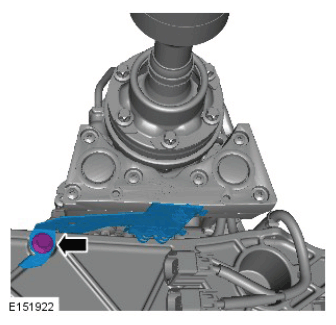

  5. G11420540
  6. NOTE: If equipped.

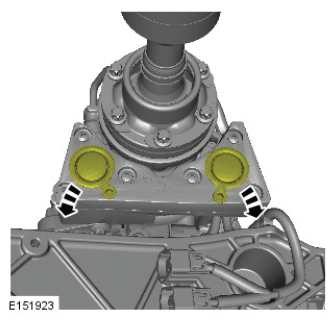

    G11420541
  7. CAUTION: Discard the nuts.

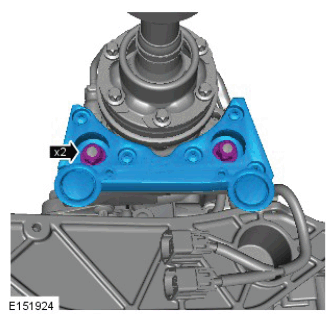

    G11420542
  8. NOTE: Release the transmission park interlock lever to allow rotation of driveshaft.

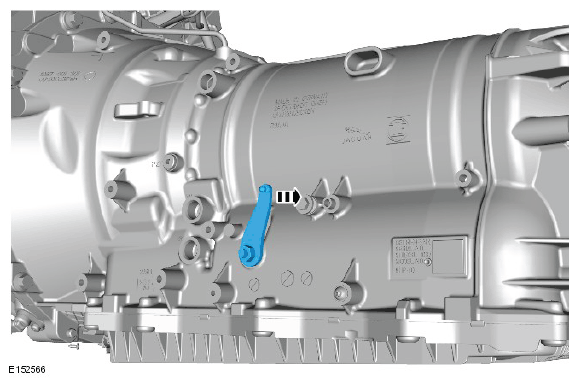

    G11420543
  9. CAUTION: Discard the bolts.
    NOTE: Mark the position of the driveshaft on the transmission flange.

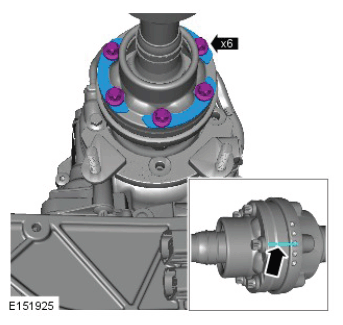

    G11420544
  10. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    CAUTION:
    • Make sure that the special tool is correctly installed to the recess on the driveshaft.
    • Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.

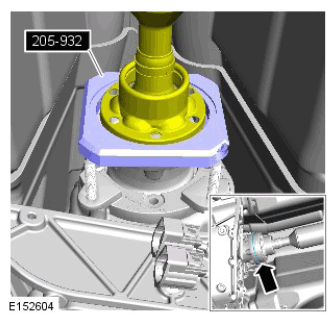

    G11420545

    Special Tool(s)  : 205-932

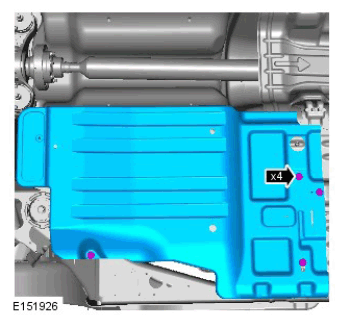

  11. G11420546

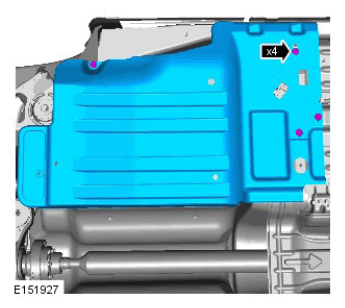

  12. G11420547

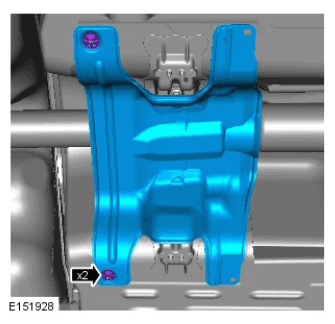

  13. G11420548
  14. CAUTION: Do not use the 5mm hole on the differential case flange for the alignment mark.
    NOTE: Using the 3mm hole on the differential case flange, paint an alignment mark (as indicated) to aid correct installation of the driveshaft to the differential case.

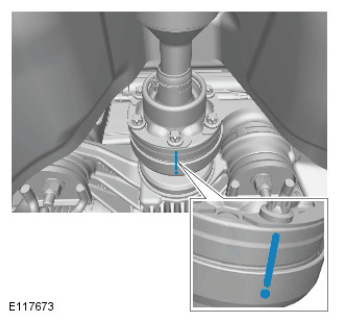

    G11420549
  15. CAUTION:
    • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
    • Discard the bolts.
    NOTE: Make sure that the special tool is correctly installed to the recess on the driveshaft.

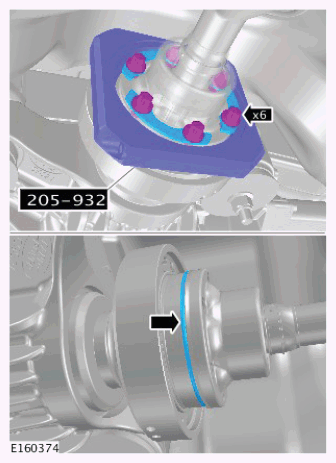

    G11420550

    Special tool(s):  205-932

  16. CAUTION: Make sure that the special tool is correctly located.

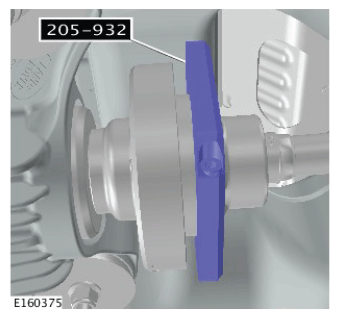

    G11420551
    		 205-932

    Special Tool(s):  205-932

  17. CAUTION: To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
    NOTE: Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.

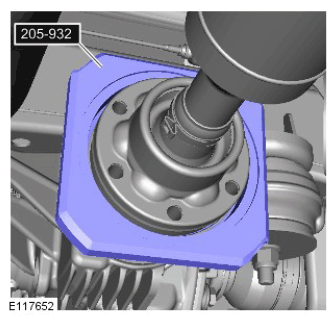

    G11420552

    Special Tool(s):  205-932

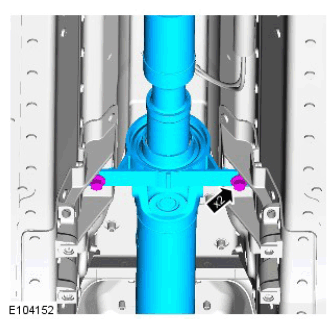

  18. G11420553
