Rear Driveshaft - AWD (G1578768): Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
-

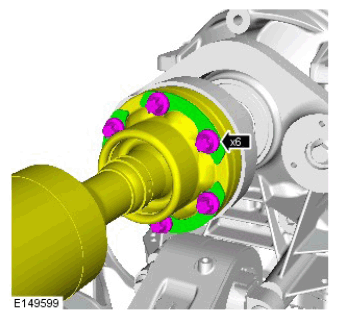

CAUTION: Only tighten the bolts finger-tight at this stage.
-
CAUTION: Make sure that new bolts are installed.NOTE: Make sure that the alignment mark on the driveshaft is correctly aligned to the alignment mark on the differential case.
Torque Specification: 75 Nm
-
NOTE:
- This step only applies if a new driveshaft is being installed.

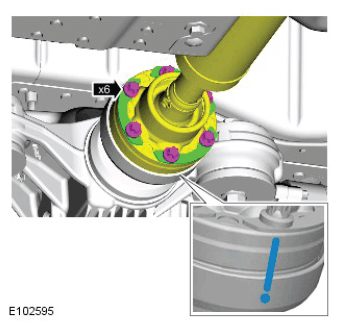

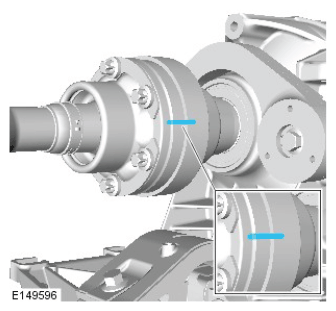

- Using the 3mm hole on the differential case flange and paint alignment mark on the driveshaft (as indicated). Make sure that the alignment marks are correctly aligned.
Torque Specification: 75 Nm
-
NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
-

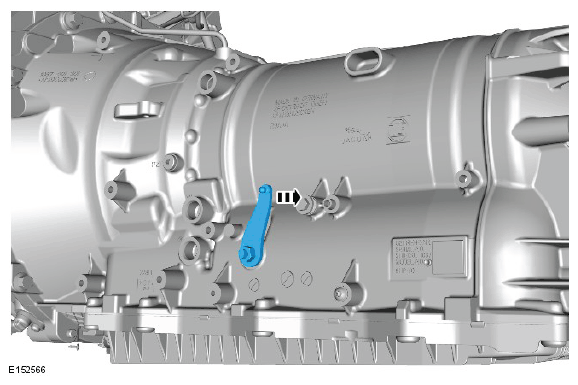

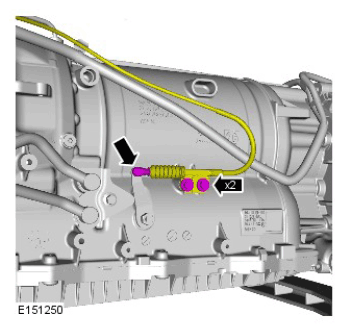

NOTE: Release the transmission park interlock lever to allow rotation of driveshaft.
-
CAUTION: Make sure that new bolts are installed.
Torque Specification: 75 Nm

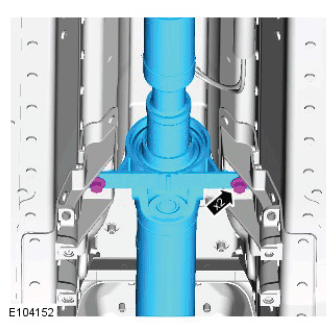

Torque Specification: 48 Nm

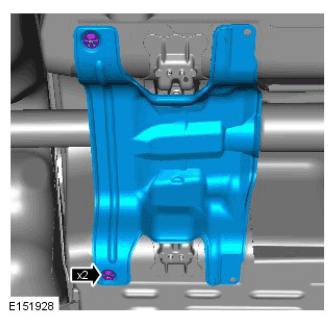

Torque Specification: 7 Nm

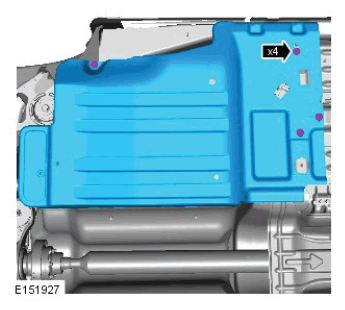

Torque Specification: 7 Nm
-

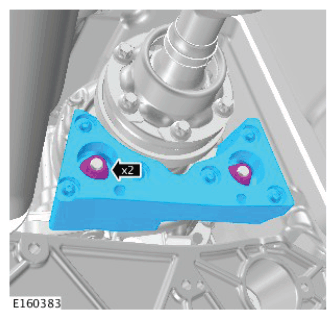

CAUTION: Make sure that new nuts are installed.
Torque Specification: 48 Nm
-

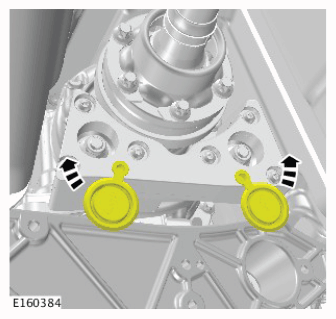

NOTE: If equipped.

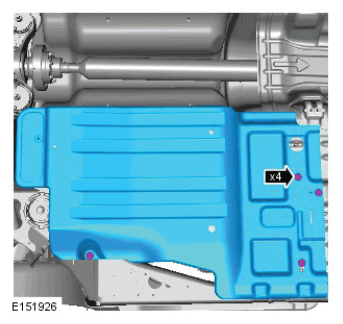

Torque Specification: 7 Nm

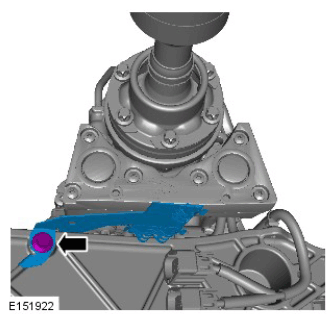

Torque Specification: 11 Nm
- Refer to Exhaust System - AWD - INSTALLATION (V6 S/C 3.0L Petrol, Removal and Installation).
- Lower the vehicle.
- Refer to Battery Disconnect and Connect (General Procedures).
