Front Driveshaft - AWD (G1578767): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the mating faces and reusable parts thoroughly and check for damage.
  2. CAUTION: Extreme care must be taken when removing/installing the front driveshaft to ensure no stress or pressure is applied to the A/C pipe. Failure to follow this instruction may result in damage to the A/C pipe and/or joints.
    NOTE: A small amount of oil may weep from the joints during storage. The loss of this oil will not affect the operation or durability of the joint.

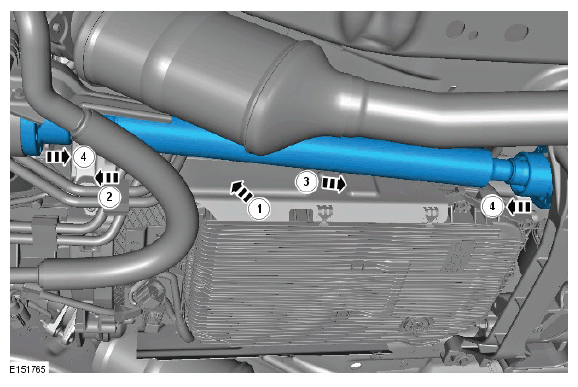

    G11420531
    • Compress the joints to engage the drive flanges.
  3. CAUTION:
    • The front differential joint must be tightened first and the transfer case joint needs to be tightened second.
    • Make sure that new bolts are installed.
    • The component must be aligned with the installation markings.

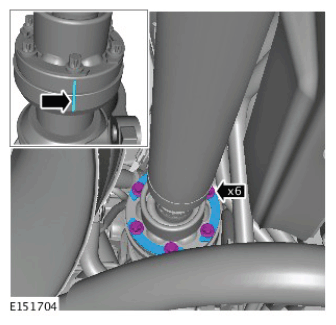

    G11420532

    Torque Specification: 40 Nm

  4. CAUTION:
    • Make sure that new bolts are installed.
    • The component must be aligned with the installation markings.

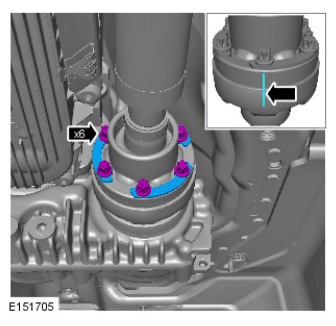

    G11420533

    Torque Specification: 40 Nm

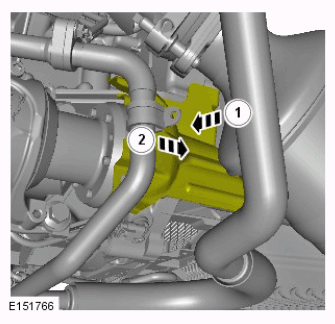

  5. G11420534

    Install the heatshield but do not secure at this stage.

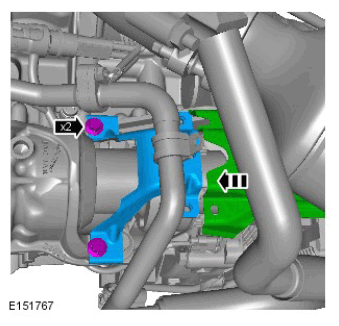

  6. G11420535

    Torque Specification: 40 Nm

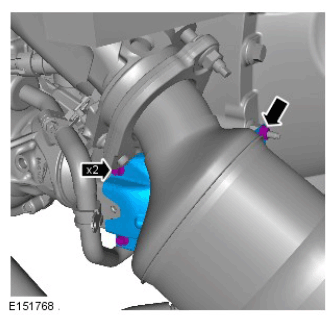

  7. G11420536

    Torque Specification: 40 Nm

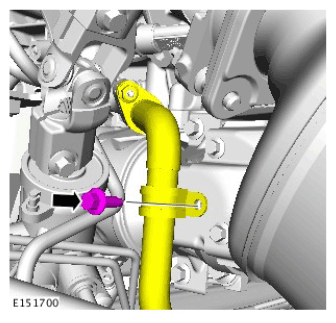

  8. G11420537

    Torque Specification: 40 Nm

  9. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
