Driveshaft - V6 3.0L Petrol (G1044196): Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.

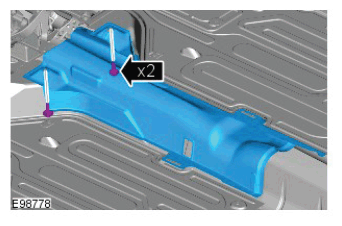

- Refer to: EXHAUST SYSTEM - RWD (G1569057) (309-00A, Removal and Installation).
- Torque Specification: 9 Nm
-
CAUTION:
- Under no circumstances must the flexible coupling (or its fixings) be loosened or removed from the driveshaft.
- Make sure that the driveshaft is supported with suitable retaining straps.

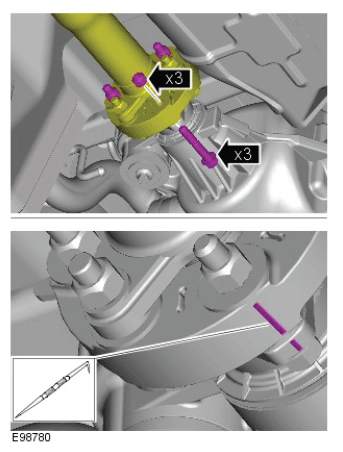

- Mark the position of the driveshaft flange in relation to the output flange.
- Torque Specification: 127 Nm
-
CAUTION:
- Under no circumstances must the flexible coupling (or its fixings) be loosened or removed from the driveshaft.
- Make sure that the driveshaft is supported with suitable retaining straps.

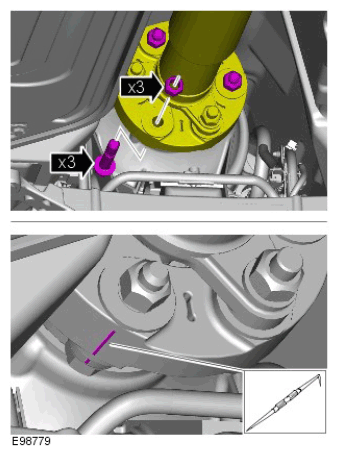

- Mark the position of the driveshaft in relation to the rear drive axle flange.
- Mark the position of the balance nut (if fitted) in relation to the flexible coupling.
- Torque Specification: 108 Nm
-

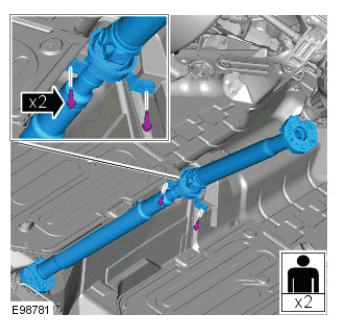

WARNING: This step requires the aid of another technician.NOTE: Note the fitted position of the spacers
- Torque Specification: 88 Nm
