Driveshaft - GTDI 2.0L Petrol/V6 S/C 3.0 L Petrol/V8 S/C 5.0L Petrol (G1447993): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Select NEUTRAL before disconnecting the battery, to allow the driveshaft to be turned.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

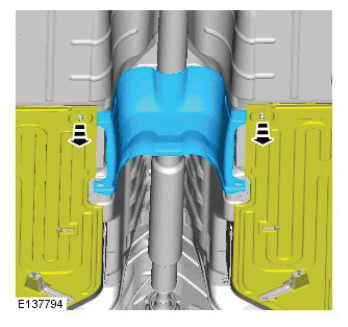

Refer to FRONT MUFFLER (G1569063) (Removal and Installation).

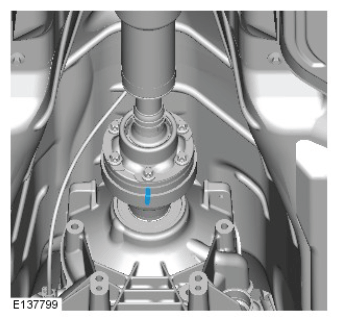

NOTE: Mark the position of the driveshaft on the transmission flange.

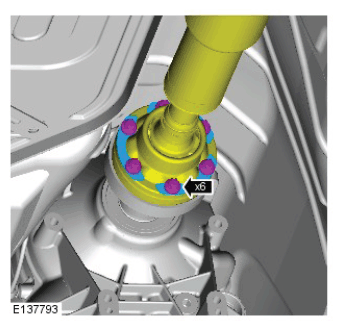

CAUTION:
- Discard the bolts.
- To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.

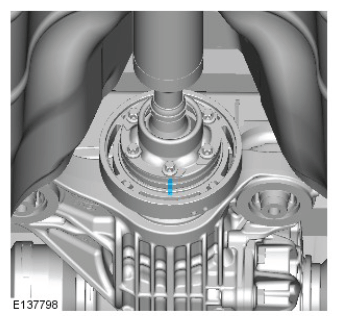

NOTE: Mark the position of the driveshaft flange in relation to the drive pinion flange damper.

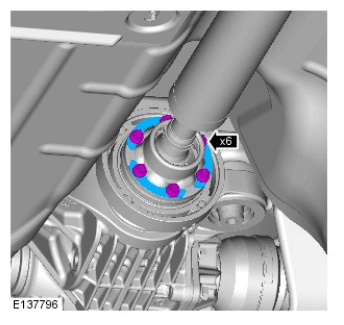

CAUTION: Discard the bolts.

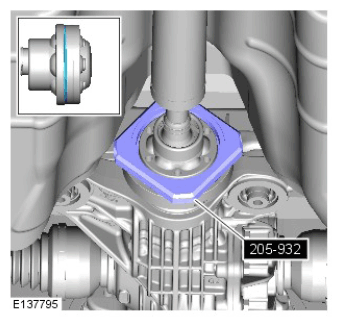

Special Tool(s): 205-932
CAUTION: To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.

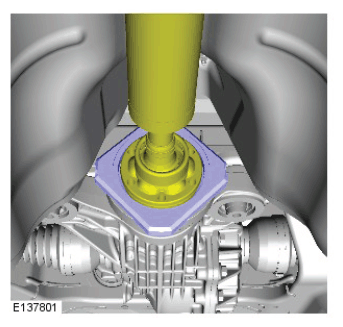

NOTE: Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.

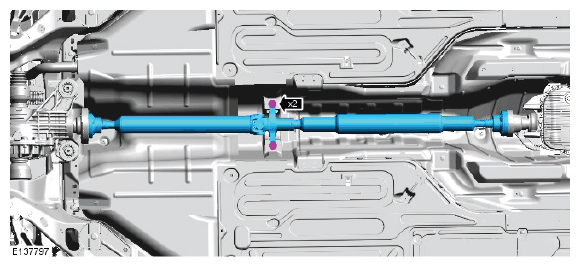

NOTE: This step requires the aid of another technician.
