Driveshaft - GTDI 2.0L Petrol/V6 S/C 3.0 L Petrol/V8 S/C 5.0L Petrol (G1447993): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

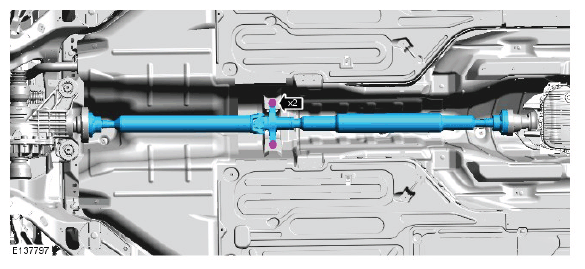

  1. CAUTION: Only tighten the bolts finger-tight at this stage.
    NOTE: This step requires the aid of another technician.
    G11420515

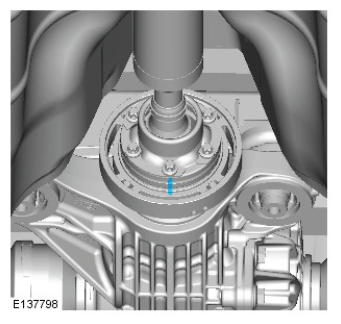

  2. CAUTION: Make sure that the installation marks are aligned.
    G11420516

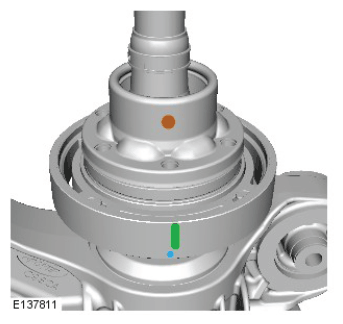

  3. CAUTION: Using the 3mm drill mark and paint mark on the differential drive pinion flange damper and paint alignment mark on the driveshaft (as indicated). Make sure that the alignment marks are correctly aligned.
    NOTE: This step only applies if a new driveshaft is being installed.
    G11420517

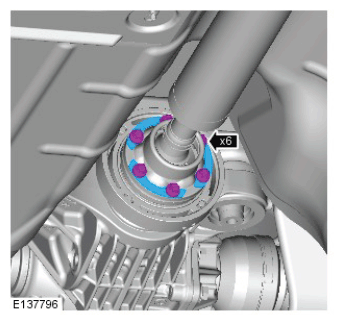

  4. G11420518

    Torque Specification: 75 Nm

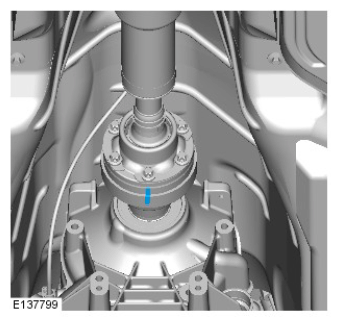

  5. NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11420519

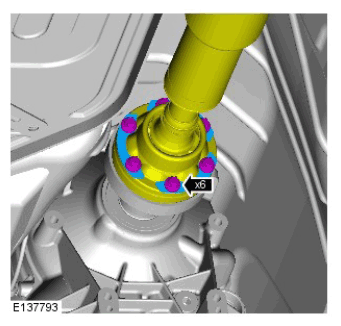

  6. G11420520

    Torque Specification: 75 Nm

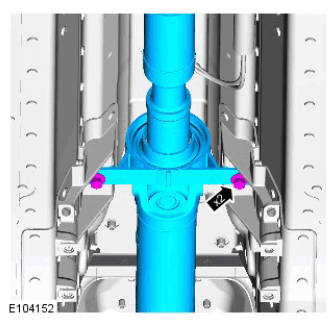

  7. G11420521

    Torque Specification: 40 Nm

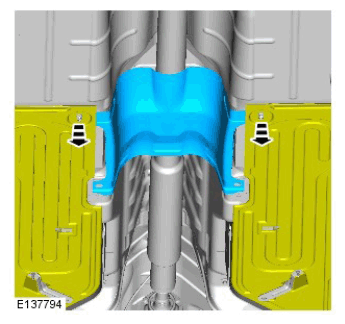

  8. G11420522

    Torque Specification: 7 Nm

  9. Refer to Front Muffler - INSTALLATION .
  10. Lower the vehicle.

  11. Refer to: Battery Disconnect and Connect (General Procedures).
