Driveshaft - Component Location (G962715)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

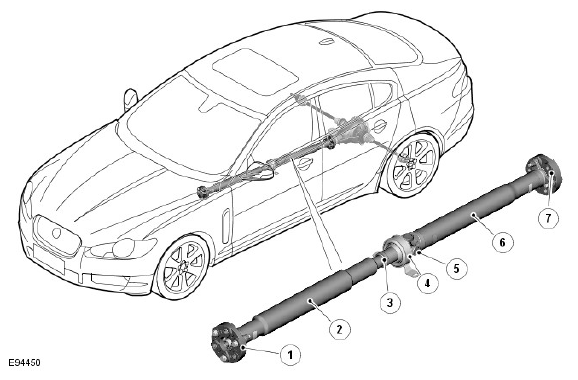

G11489700
ITEM DESCRIPTION
1 Transmission flexible joint
2 Collapsible front driveshaft tube
3 Splined slip joint
4 Center bearing
5 Universal joint
6 Rear driveshaft tube
7 Differential flexible joint
