Anti-Theft Alarm Horn (G1057928): Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Jaguar XF, 2014 Jaguar XF, 2013 Jaguar XF, 2012 Jaguar XF, and 2011 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

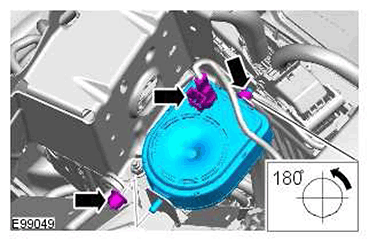

  1. G11422590

    Install is the reverse of removal.

    • Tighten to 7 Nm.

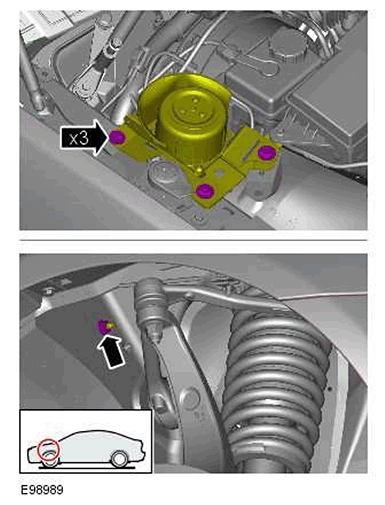

  2. G11422591

    Tighten to 25 Nm.

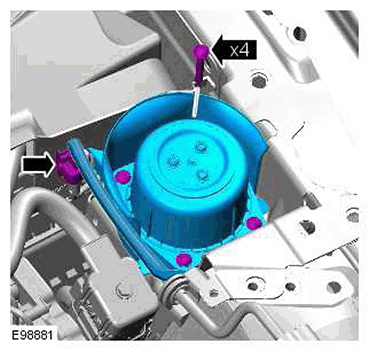

  3. G11422592

    Tighten to 8 Nm.

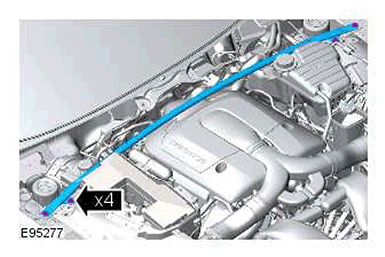

  4. G11422593

    Tighten to 25 Nm.
