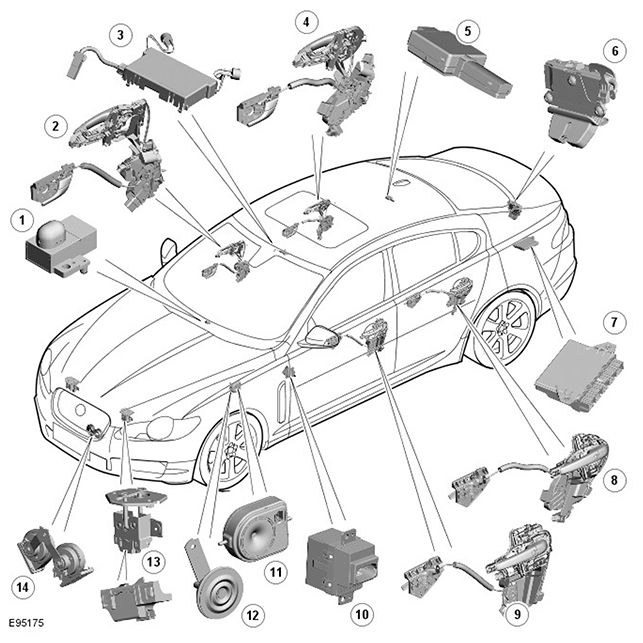

Component Location
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Jaguar XF, 2014 Jaguar XF, 2013 Jaguar XF, 2012 Jaguar XF, and 2011 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Alarm indicator |
| 2 | Latch mechanism - front door |
| 3 | Intrusion detection module |
| 4 | Latch mechanism - rear door |
| 5 | Central locking Radio Frequency (RF) receiver |
| 6 | Luggage compartment lid latch mechanism |
| 7 | Keyless vehicle module |
| 8 | Latch mechanism - rear door |
| 9 | Latch mechanism - front door |
| 10 | Start control unit |
| 11 | Battery backed sounder |
| 12 | Passive sounder |
| 13 | Hood latch mechanism |
| 14 | Vehicle horn |
