Cooling System Partial Draining, Filling And Bleeding (G1557112): Draining

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
Never remove the coolant expansion tank cap under any circumstances while the engine is operating. Failure to follow this instruction may result in damage to the engine.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to Radiator Splash Shield (Front End Body Panels, Removal and Installation).
WARNING:

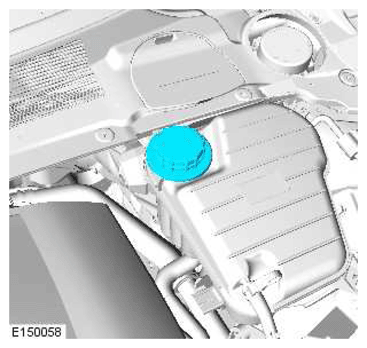

- Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the coolant expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
- Be prepared to collect escaping coolant.
CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
CAUTION: Be prepared to collect escaping fluids.

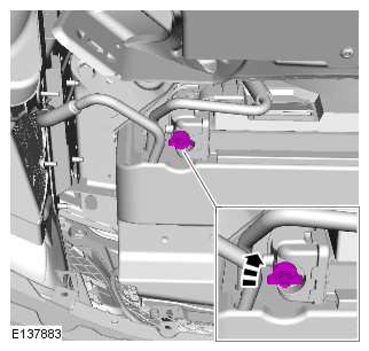

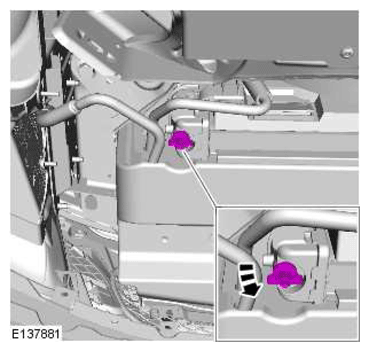

- Allow the coolant to drain into a suitable container.
