Cooling Module (G1773690): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Air Conditioning System Recovery, Evacuation and Charging (Climate Control System - General Information, General Procedures).
  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

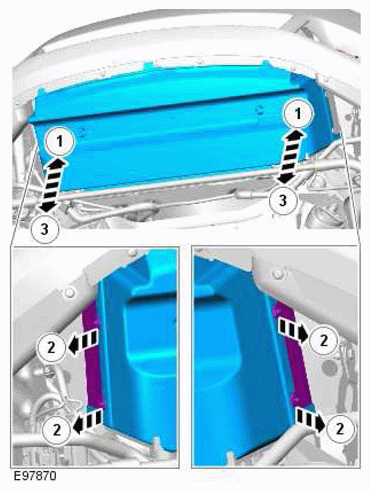

    G11418759
  5. WARNING:
    • Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
    • Be prepared to catch escaping fluid.

    Refer to: Cooling System Partial Draining, Filling and Bleeding  (V6 S/C 3.0L Petrol, General Procedures).

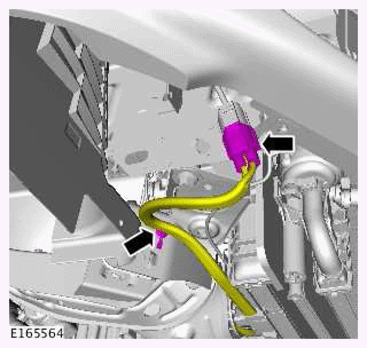

  6. G11418760
  7. CAUTION: A new O-ring seal is to be installed.

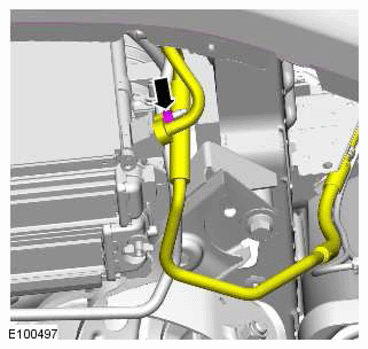

    G11418761

    Torque Specification: 8 Nm

  8. CAUTION: A new O-ring seal is to be installed.

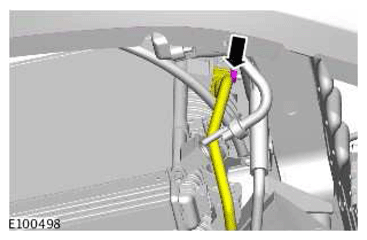

    G11418762

    Torque Specification: 8 Nm

  9. Lower the vehicle.
  10. Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  11. 11.Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  12. Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  13. Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  14. Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  15. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

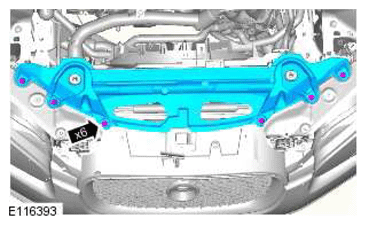

    G11418763

    Torque Specification: 9 Nm

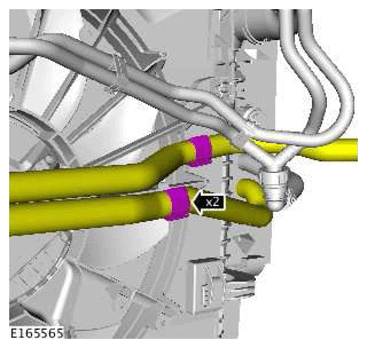

  16. G11418764
  17. CAUTION: Be prepared to collect escaping coolant.

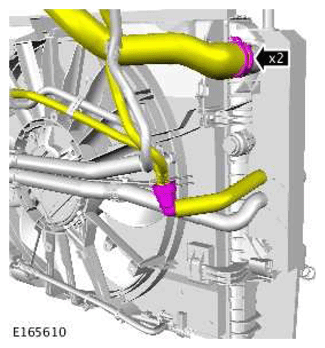

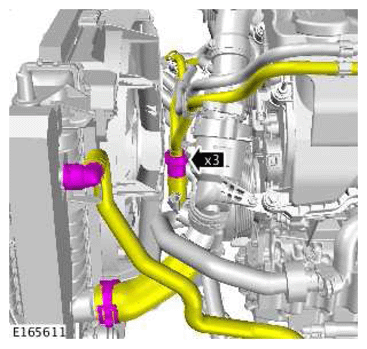

    G11418765
  18. CAUTION: Be prepared to collect escaping coolant.
    G11418766

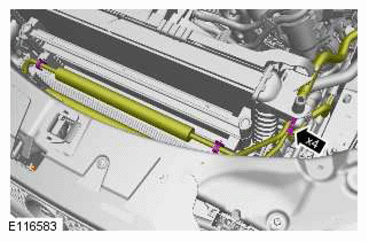

  19. G11418767
  20. CAUTION: Be prepared to collect escaping coolant.
    NOTE: This step requires the aid of another technician.

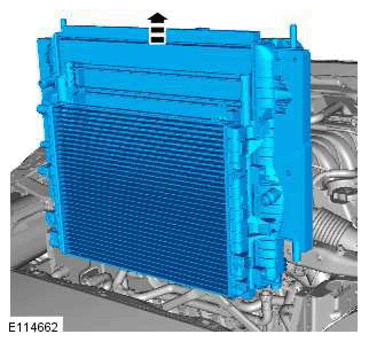

    G11418768
