Cooling System Draining, Filling And Bleeding (G1557006): Draining
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Engine Cover - V6 S/C 3.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
- Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
- Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
-
WARNING:

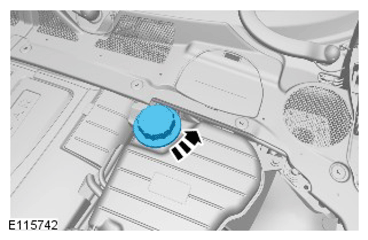

- Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
- Be prepared to collect escaping fluid.
CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure -

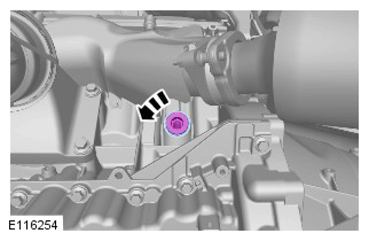

CAUTION: Be prepared to collect escaping fluids.

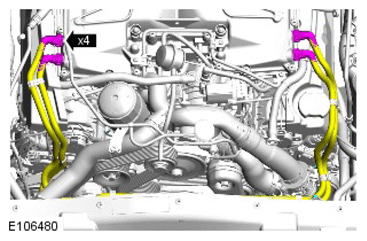

- CAUTION: Be prepared to collect escaping fluids.
-

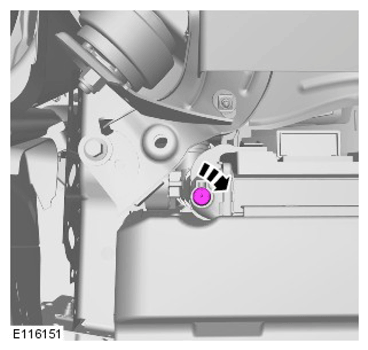

CAUTION: Be prepared to collect escaping coolant.
-

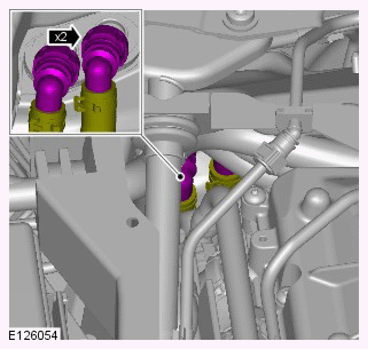

CAUTION: Be prepared to collect escaping coolant.
Torque Specification: 2 Nm

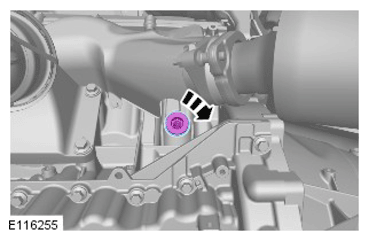

Torque Specification: 50 Nm
- Carry out the procedure up to step 1 in the filling section three times, filling the cooling system with clean water at the first two drains. At the third refill, use a suitable measuring tool to make sure that the cooling system maintains a 50% mix.
