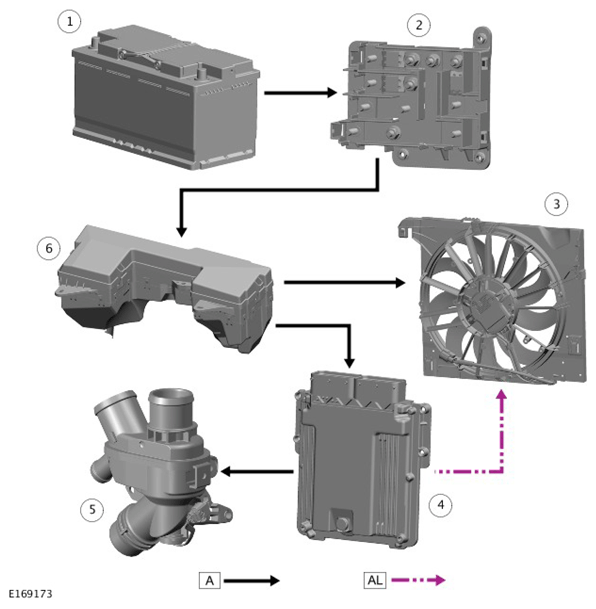

Control Diagram
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; AL
= PWM (Pulse Width Modulation).
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Electric cooling fan |
| 4 |
Engine Control Module (ECM) |
| 5 |
Electric thermostat |
| 6 |
Engine Junction Box (EJB) |
