Rear Knock Sensor (G1550215): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Intake Manifold (Engine - GTDi 2.0L Petrol, Removal and Installation).

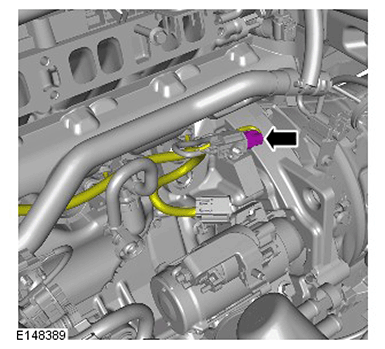

  2. G11417224

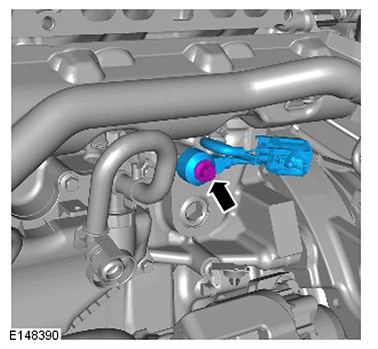

  3. G11417225

    Torque Specification: 20 Nm
