Intake Camshaft Position Sensor (G1550213): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).

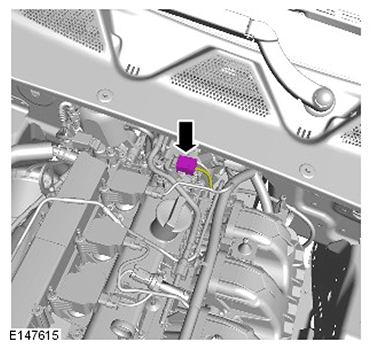

  2. G11417216
  3. NOTE: Lubricate the O-ring seals with clean engine oil.

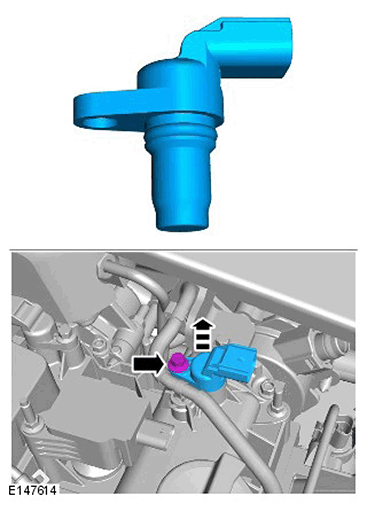

    G11417217

    Torque Specification: 7 Nm
