Engine Coolant Temperature Sensor (G1568894): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to: Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Cooling System Partial Draining and Vacuum Filling (Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).

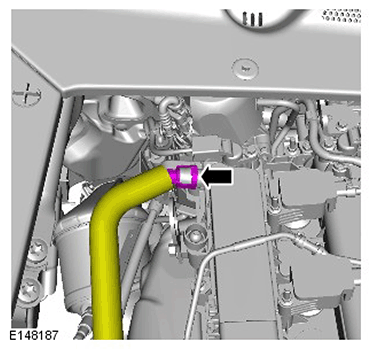

  3. G11417194

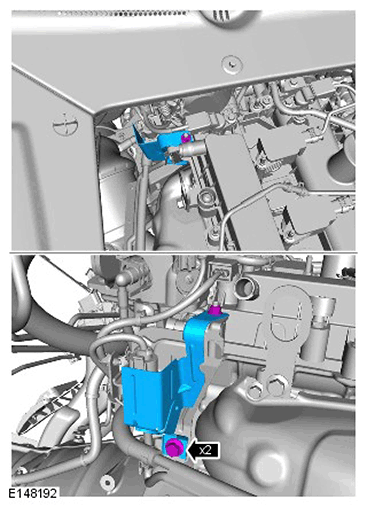

  4. G11417195

    Torque Specification:

    M6 10 Nm

    M10 45 Nm

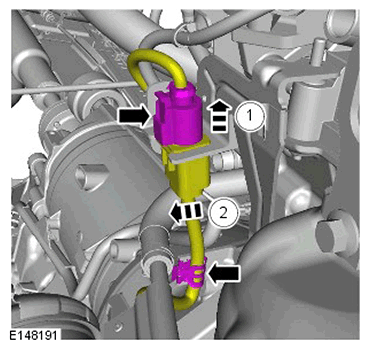

  5. G11417196

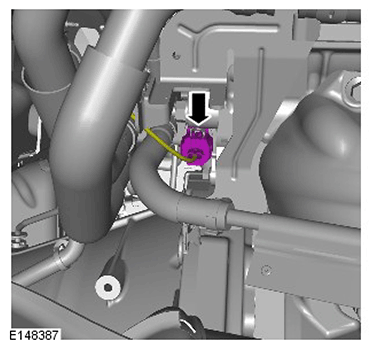

  6. G11417197

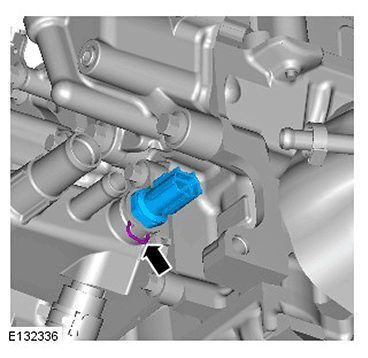

  7. G11417198
  8. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Lubricate the O-ring seal with clean coolant.

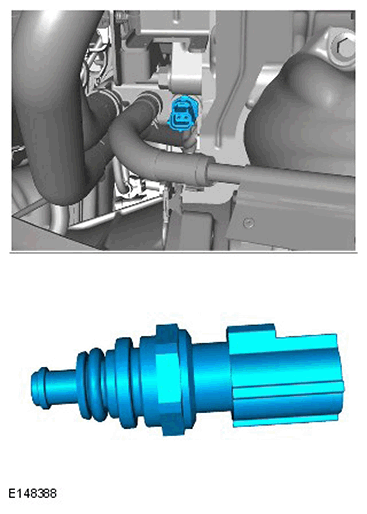

    G11417199
