Engine Control Module (G1568893): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  3. NOTE: Right-hand shown, left-hand similar.

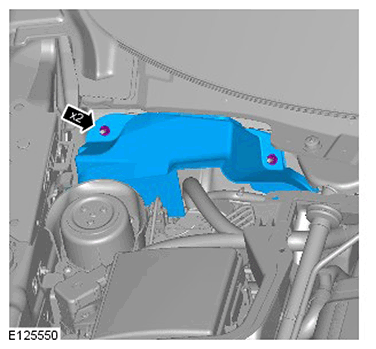

    G11417184
  4. CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    NOTE: RH illustration shown, LH is similar.

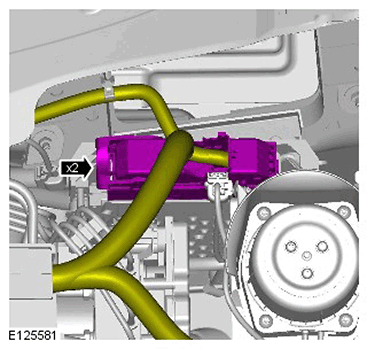

    G11417185

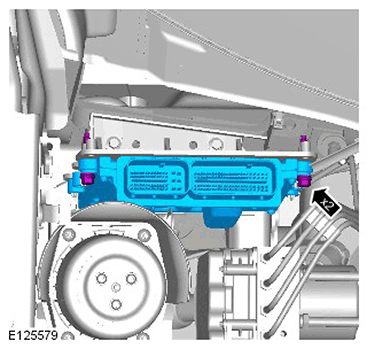

  5. G11417186

    Torque Specification: 7 Nm

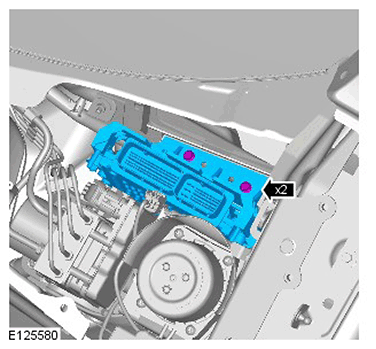

  6. G11417187

    Torque Specification: 7 Nm

  7. NOTE: Do not disassemble further if the component is removed for access only.

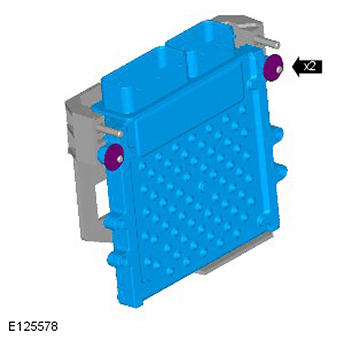

    G11417188

    Torque Specification: 7 Nm
