Crankshaft Position Sensor (G1550207): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Raise and support the vehicle.
  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

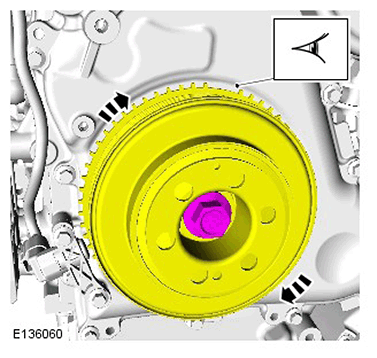

  3. G11417173

    Rotate the engine until the trigger wheel gap and camshafts are positioned as shown.

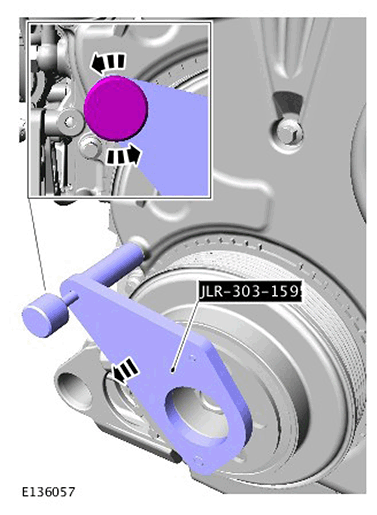

  4. G11417174

    Special Tool(s):  JLR-303-1595

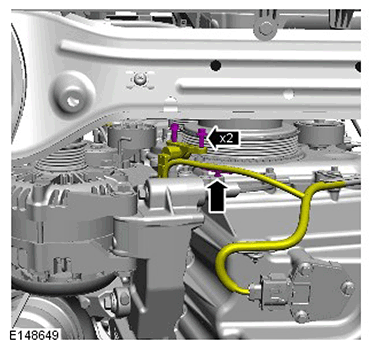

  5. G11417175
  6. CAUTION: Make sure that the wiring harnesses are correctly located.
    NOTE: Mark the crankshaft position sensor (CKP) ring tang prior to removal.

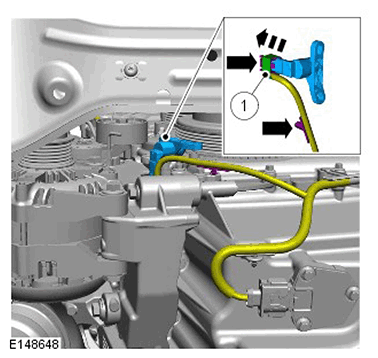

    G11417176
