Fuel Pump Metering Valve

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

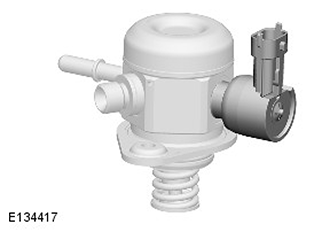

G11417143

The fuel metering valve is integral with the HP fuel pump, which is located on the rear of the cylinder head. The fuel metering valve returns unwanted fuel back to the Low Pressure (LP) system to be recycled back to the HP fuel pump.

The fuel metering valve receives a 10.8V PWM (pulse width modulation) power supply and a ground from the ECM to control the valve opening. The valve coil has a resistance of 0.49 Ohms ± 0.023.
