Engine Oil Temperature Sensor

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

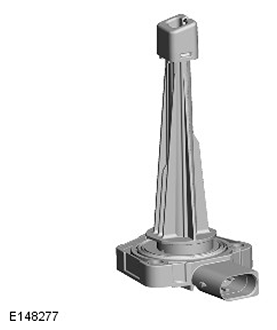

G11417142

The engine oil temperature sensor is located in a hole in the left side of the oil pan. The sensor is sealed to the oil pan with an O ring seal and secured with flange head bolt.

The sensor uses an NTC sensor to determine the oil temperature. The temperature sensor is a NTC type which operates in the -40 Degrees Celsius to +159 Degrees Celsius temperature range. The sensor receives a 5V reference voltage supplied through a resistor within the ECM and returns a voltage to the ECM relative to the oil temperature and resistance through the NTC sensor.
