Accelerator and Brake Pedal Assembly

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

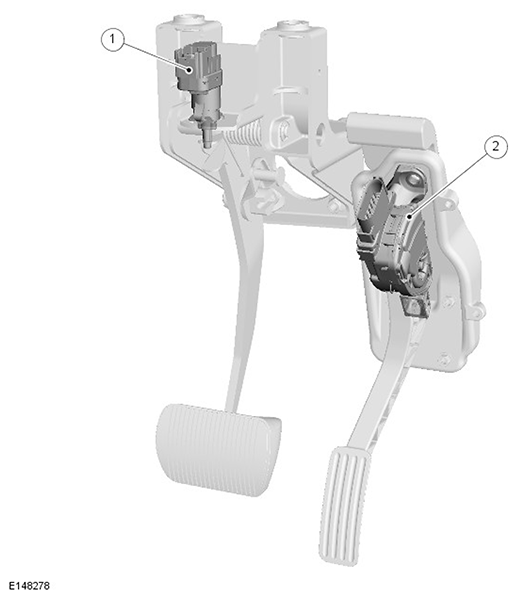

G11417144
ITEM DESCRIPTION
1 Stop lamp switch
2 Accelerator Pedal Position (APP) sensor

Both stop lamp switches are mounted adjacent to each other on the brake pedal bracket. The stop lamp switch is a normally open switch, the stop lamp diagnostic switch is normally closed to ground.

Both switches are connected directly to the CJB. The stop lamp switch is also connected to the ECM for speed control functions.
