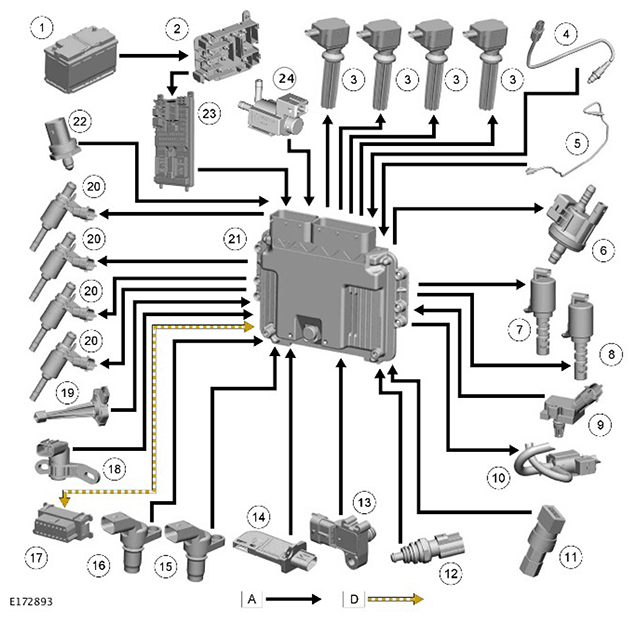

Control Diagram - Sheet 2 Of 2
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Ignition coil (4 off) |
| 4 | Pre-catalyst Heated Oxygen Sensor (HO2S) |
| 5 | Post catalyst HO2S |
| 6 | Purge valve |
| 7 | Variable Camshaft Timing (VCT) solenoid (exhaust) |
| 8 | Variable Camshaft Timing (VCT) solenoid (inlet) |
| 9 | Turbocharger boost pressure and temperature sensor |
| 10 | Turbine by-pass control actuator valve |
| 11 | Air Conditioning (A/C) pressure sensor |
| 12 | Engine Coolant Temperature (ECT) sensor |
| 13 | Manifold Absolute Pressure (MAP) sensor |
| 14 | Mass Air Flow (MAF) sensor |
| 15 | Camshaft Position (CMP) sensor (exhaust) |
| 16 | Camshaft Position (CMP) sensor (inlet) |
| 17 | Diagnostic socket |
| 18 | Crankshaft Position (CKP) sensor |
| 19 | Engine oil temperature sensor |
| 20 | Fuel injector (4 off) |
| 21 | Engine Control Module (ECM) |
| 22 | Fuel Rail Pressure (FRP) sensor |
| 23 | Central Junction Box (CJB) |
| 24 | Vacuum control solenoid (active engine mountings) |
