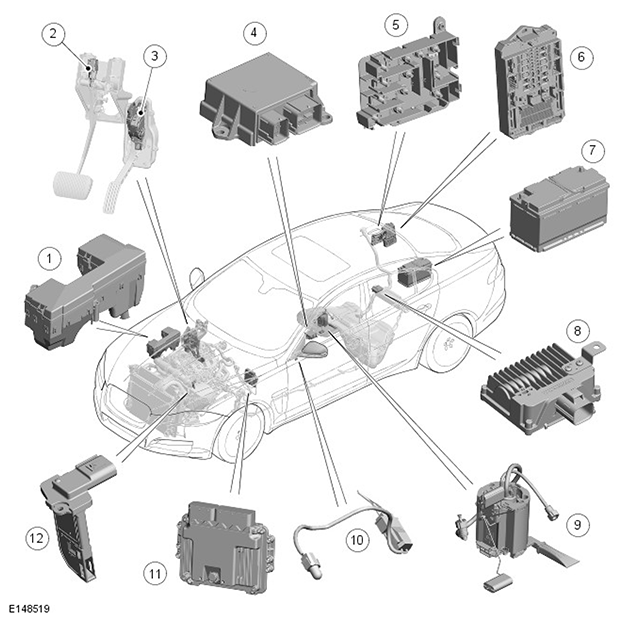

Component Location - Sheet 4 Of 4
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Junction Box (EJB) |
| 2 | Stop lamp switch |
| 3 | Accelerator Pedal Position (APP) sensor |
| 4 | Restraints Control Module (RCM) |
| 5 | Battery Junction Box (BJB) |
| 6 | Rear Junction Box (RJB) |
| 7 | Battery |
| 8 | Fuel Pump Driver Module (FPDM) |
| 9 | Fuel Pump Module |
| 10 | Ambient temperature sensor |
| 11 | Engine Control Module (ECM) |
| 12 | Mass Air Flow (MAF) sensor |
