Rear Muffler (G1569059): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

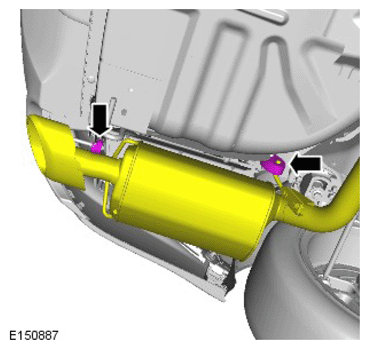

    G11423985
  3. CAUTION: Install a new clamp.

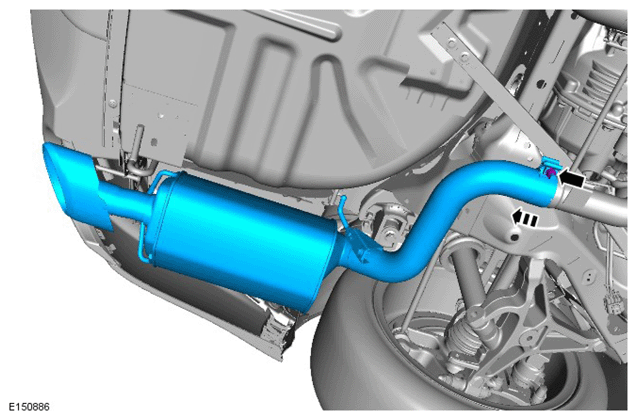

    G11423986

    Torque Specification  : 55 Nm
