Left Catalytic Converter - RWD (G1569055): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

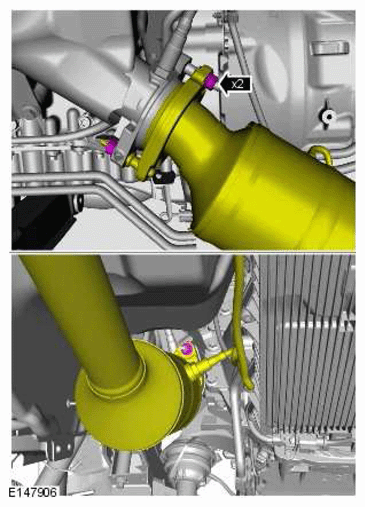

  3. G11423901

    Torque Specification  : 40 Nm

    2WD vehicles

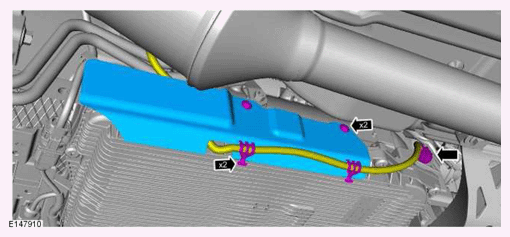

  4. G11423902

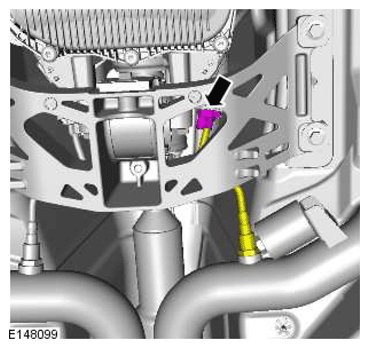

  5. G11423903

    4WD vehicles

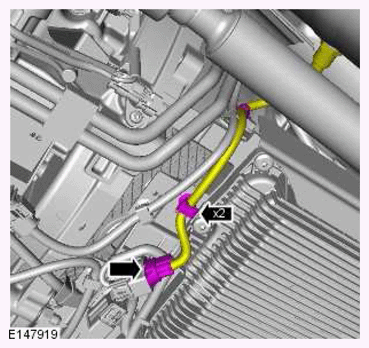

  6. G11423904

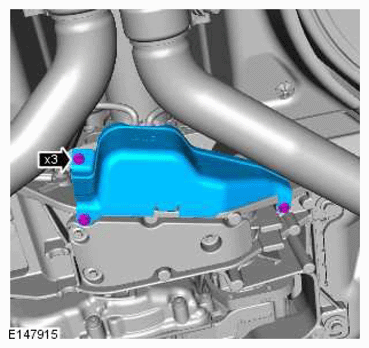

  7. G11423905

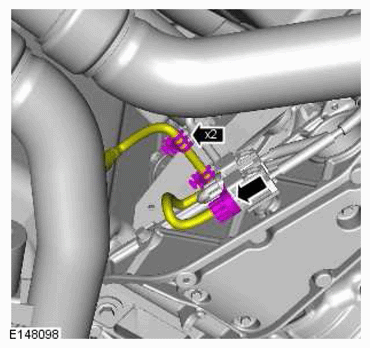

  8. G11423906

    All vehicles

  9. CAUTION: Install a new clamp.

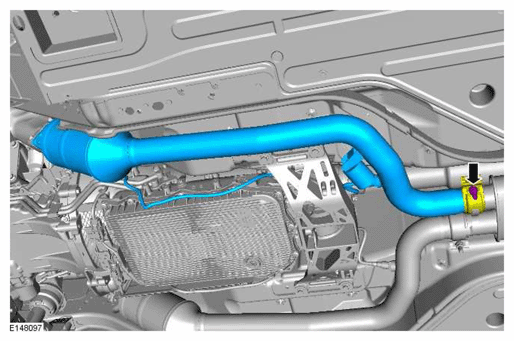

    G11423907

    Torque Specification  : 55 N

  10. NOTE: Do not disassemble further if the component is removed for access only.

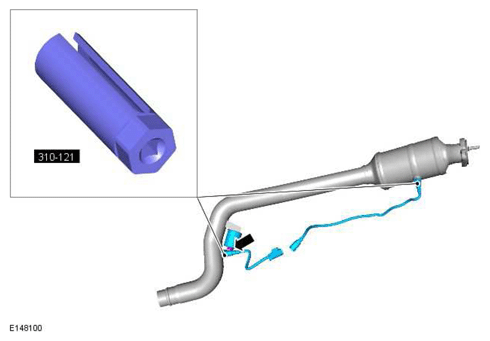

    G11423908

    Special Tool(s): 310-121

    Torque Specification:

    Catalyst heated oxygen sensors (HO2S) 48 Nm

    Damper 18 Nm
