Front Muffler (G1569058): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: The procedure must be carried out on both sides.

    Refer to: Rear Muffler (Exhaust System - GTDi 2.0L Petrol, Removal and Installation).

    2WD vehicles

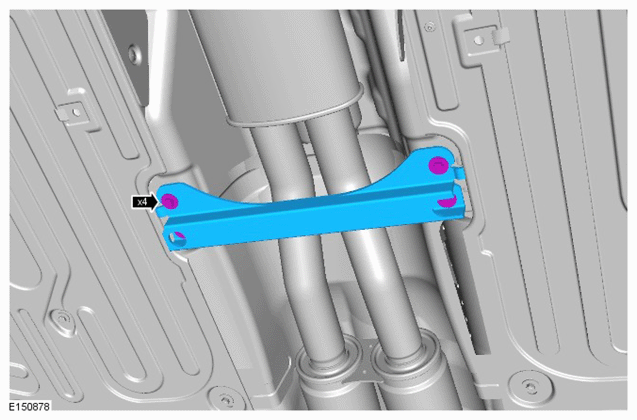

    G11423979

    Torque Specification  : 6 Nm

4WD vehicles

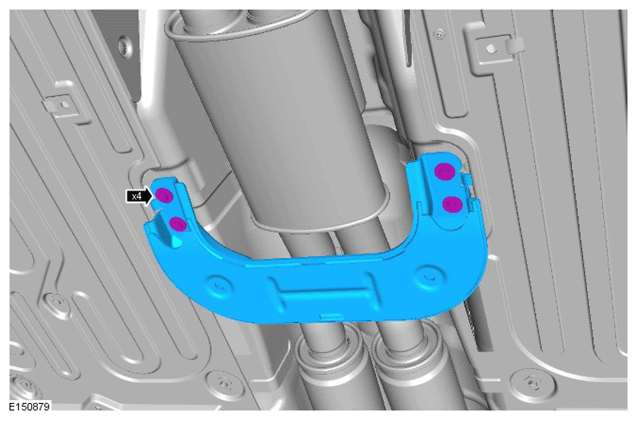

  1. G11423980

    Torque Specification  : 6 Nm

    All vehicles

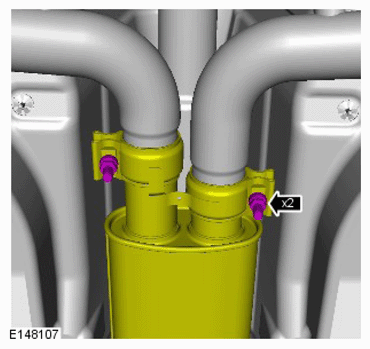

  1. G11423981

    Torque Specification  : 55 Nm

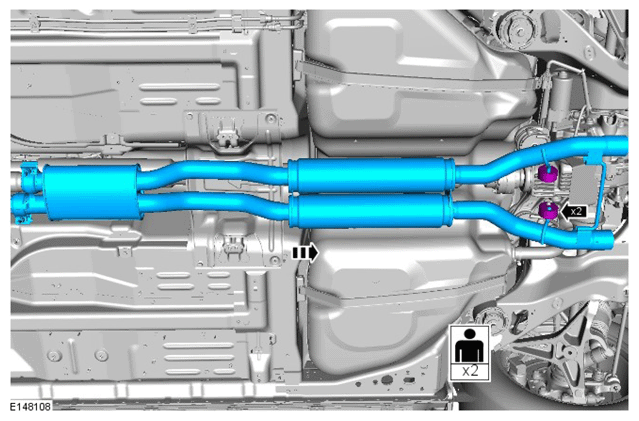

  2. G11423982
  3. CAUTION: Do not carry out this step if a new exhaust is to be installed.

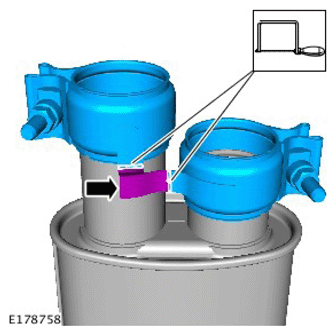

    G11423983

    Remove the retaining clamps using a suitable tool.
