Exhaust System - RWD (G1569057): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

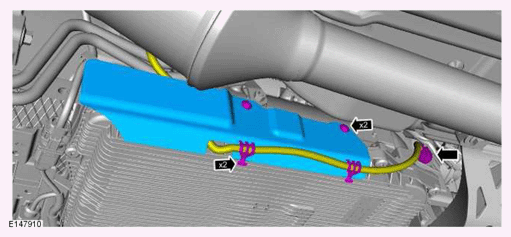

  3. G11423946

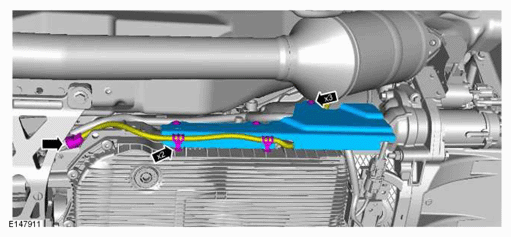

  4. G11423947

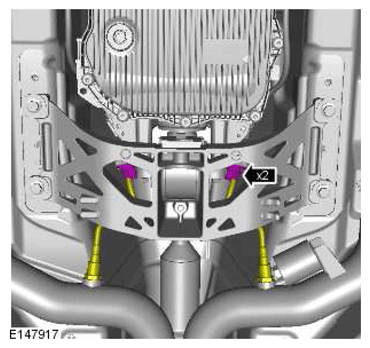

  5. G11423948

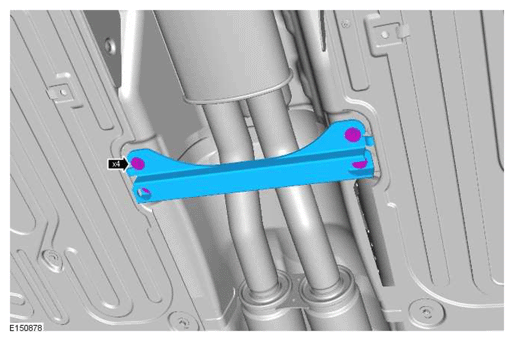

  6. G11423949

    Torque Specification  : 6 Nm

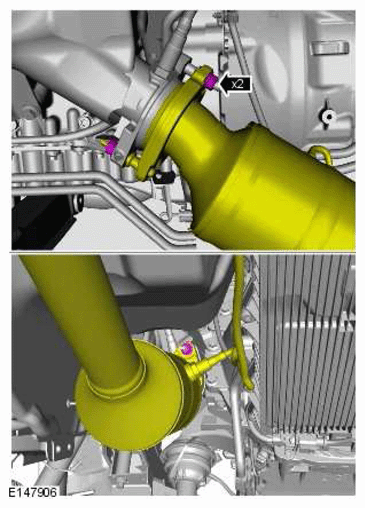

  7. G11423950

    Torque Specification  : 40 Nm

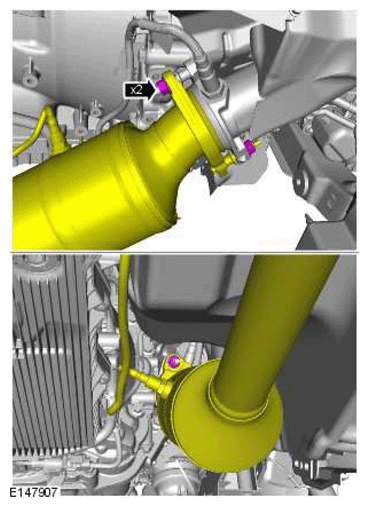

  8. G11423951

    Torque Specification  : 40 Nm

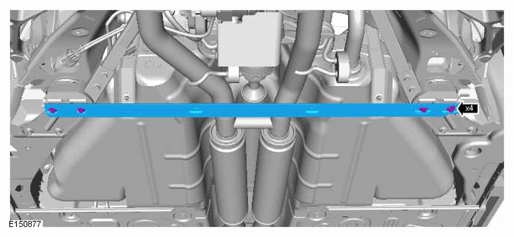

  9. G11423952

    Torque Specification  : 30 Nm

  10. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE:
    • The step must be carried out on both sides.
    • RH illustration shown, LH is similar.

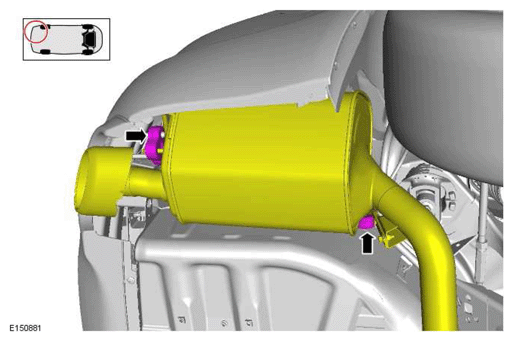

    G11423953

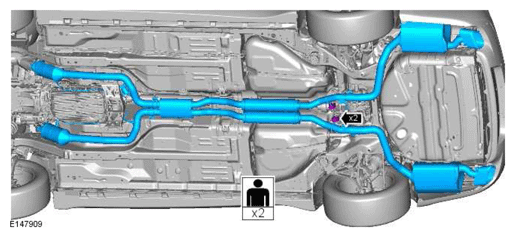

  11. G11423954
  12. NOTE: Do not disassemble further if the component is removed for access only.

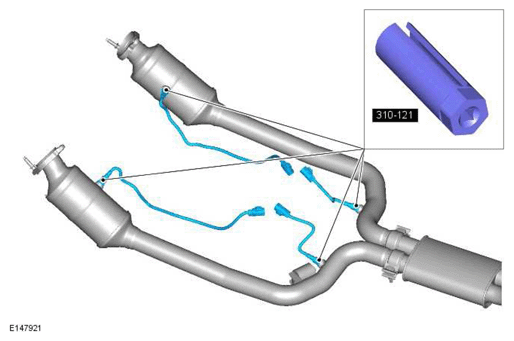

    G11423955

    Special Tool(s): 310-121

    Torque Specification: 48 Nm

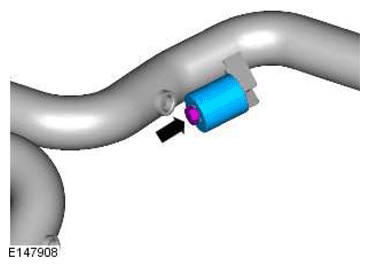

  13. G11423956

    Torque Specification  : 18 Nm
