Exhaust System - AWD (G1576769): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

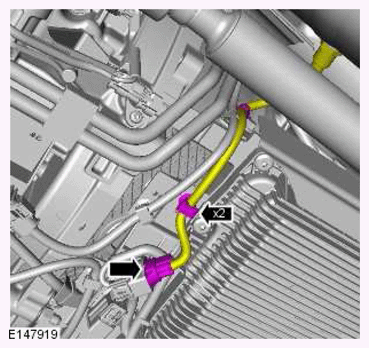

  3. G11423964

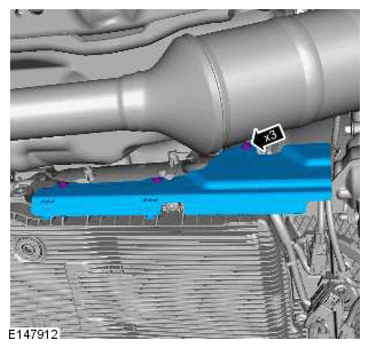

  4. G11423965

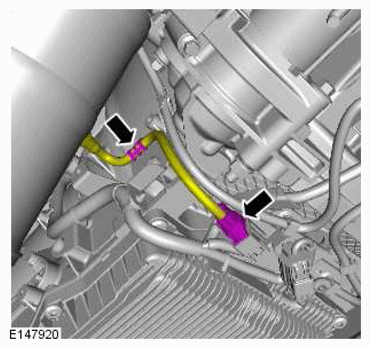

  5. G11423966

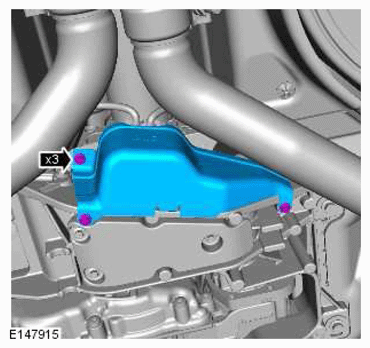

  6. G11423967

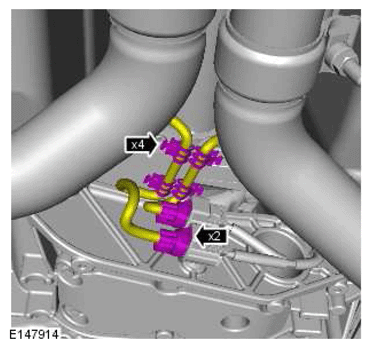

  7. G11423968

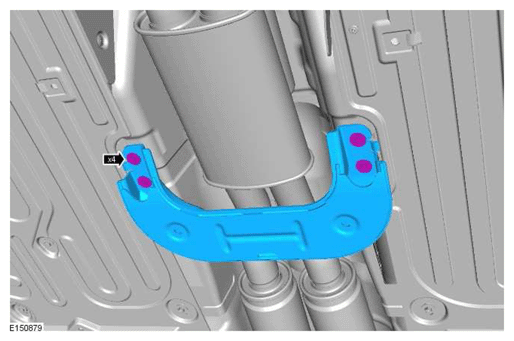

  8. G11423969

    Torque Specification  : 6 Nm

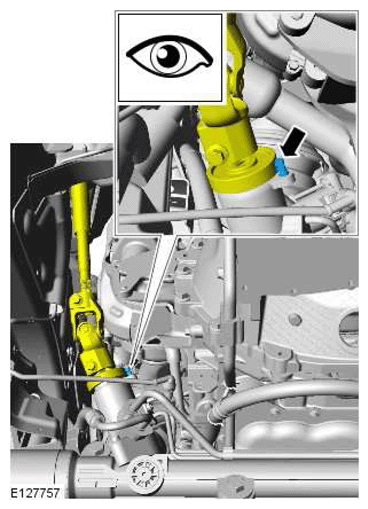

  9. G11423970

    Make sure the alignment mark, on the steering gear pinion seal protection cover, is central to the steering gear pinion casting.

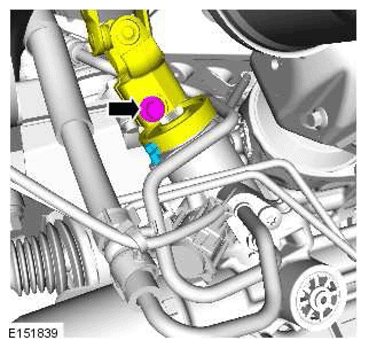

  10. WARNING: Make sure that a new bolt is installed.
    G11423971

    Torque Specification  : 35 Nm

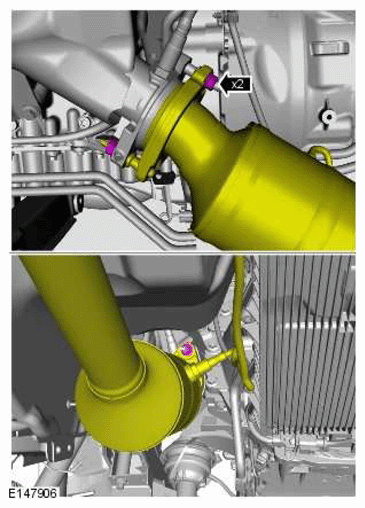

  11. G11423972

    Torque Specification  : 40 Nm

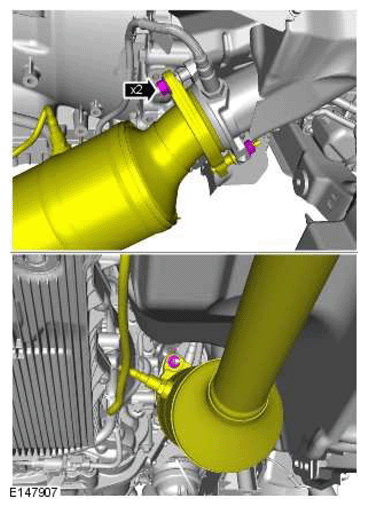

  12. G11423973

    Torque Specification  : 40 Nm

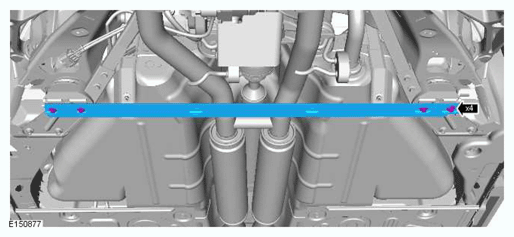

  13. G11423974

    Torque Specification  : 30 Nm

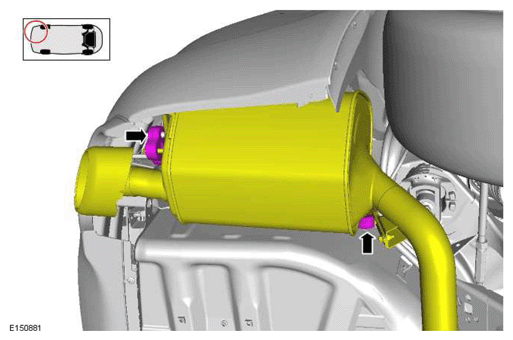

  14. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE:
    • The step must be carried out on both sides.
    • RH illustration shown, LH is similar.
    G11423975

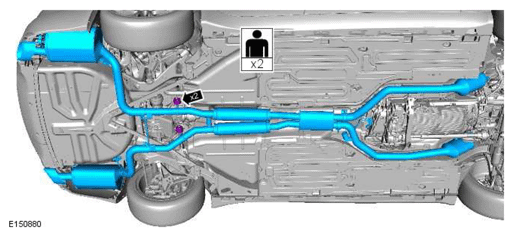

  15. G11423976

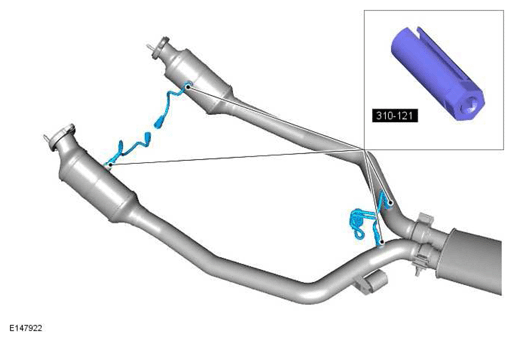

  16. G11423977

    Special Tool(s): 310-121

    Torque Specification: 48 Nm

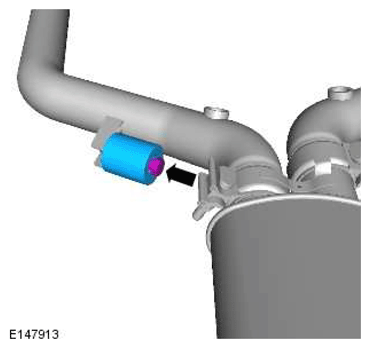

  17. G11423978

    Torque Specification  : 18 Nm
