Throttle Body (G1550174): Removal
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect (General Procedures).
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Intake Manifold (Removal and Installation).
-

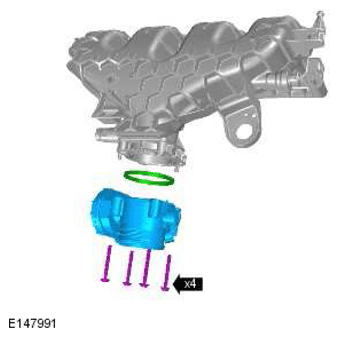

CAUTION:
- The O-ring seal is to be reused unless damaged.
- Make sure that the mating faces are clean and free of foreign material.
Torque Specification: 8 Nm
