Fuel Pump (G1574612): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to Battery Disconnect and Connect (General Procedures).
  2. Refer to Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).
  3. Refer to Fuel System Pressure Release (General Procedures).

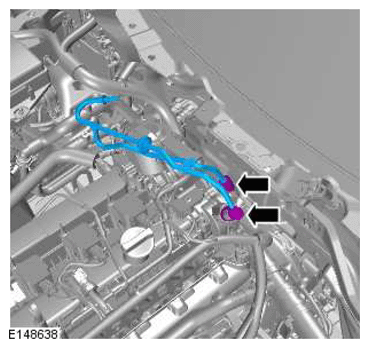

  4. G11419480

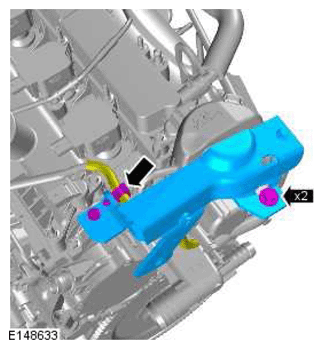

  5. G11419481

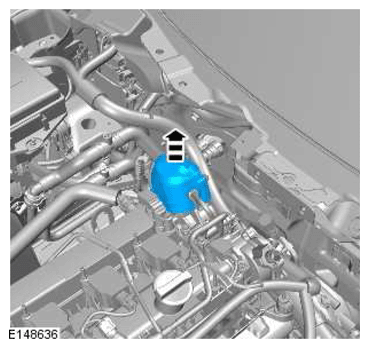

  6. G11419482

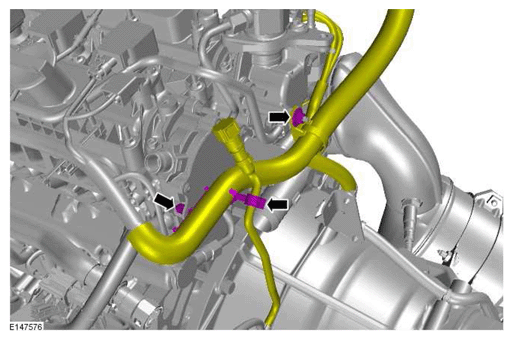

  7. G11419483

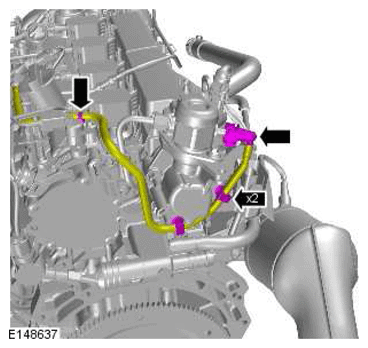

  8. G11419484

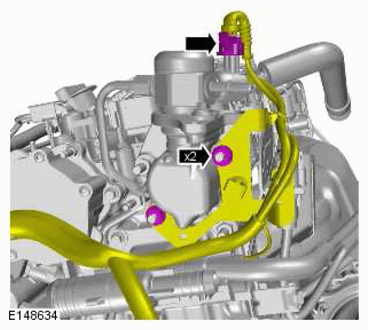

  9. G11419485

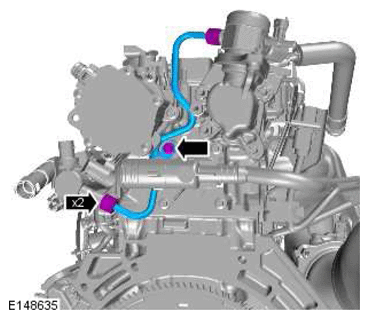

  10. CAUTION: Discard the fuel pipe.
    G11419486

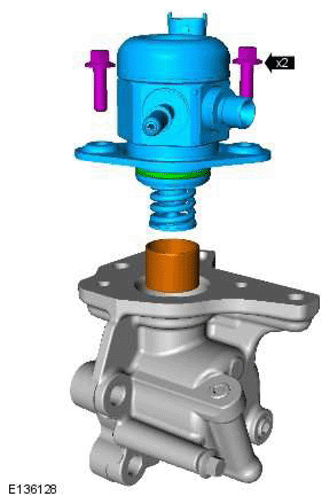

  11. CAUTION: Discard the bolts.
    G11419487

    Loosen the Torx screws a turn each at a time.
