Fuel Pump (G1574612): Installation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Remove and discard all blanking caps.
-
CAUTION:
- Install all the bolts finger tight before final tightening.
- Tighten the Torx screws a turn at a time until the correct torque is achieved.
- Make sure that new bolts are installed.

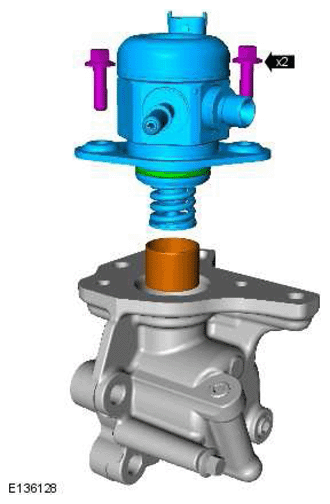

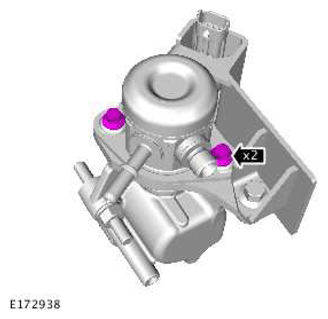

NOTE: Lubricate the O-ring seal with clean engine oil. -
CAUTION: Tighten the component finger tight first.

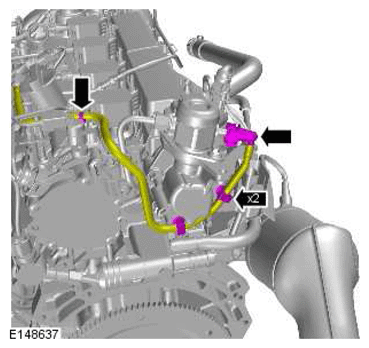

- Torque Specification:
Bolt 10 Nm

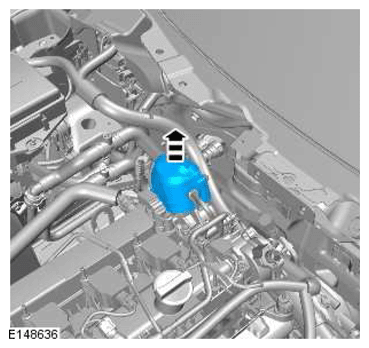

- Torque Specification:
Unions 30 Nm

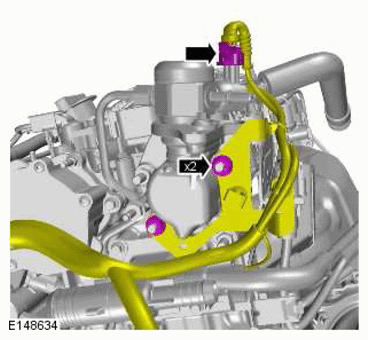

- Torque Specification:
Torque Specification: 11 Nm

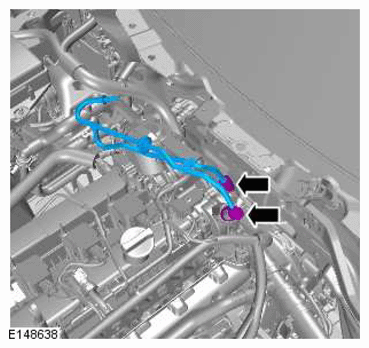

Torque Specification: 25 Nm

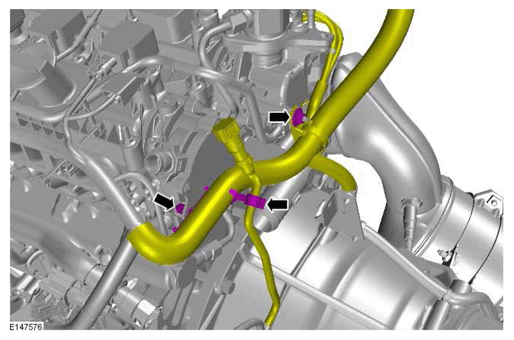

Torque Specification: 8 Nm
-

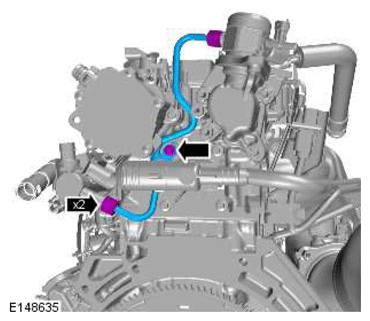

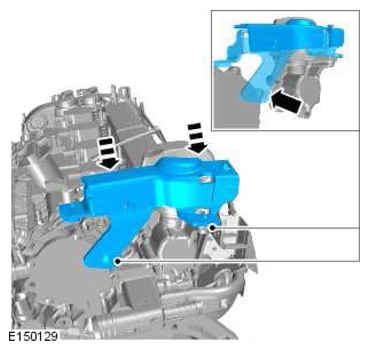

NOTE: Make sure that the component is correctly located.
-

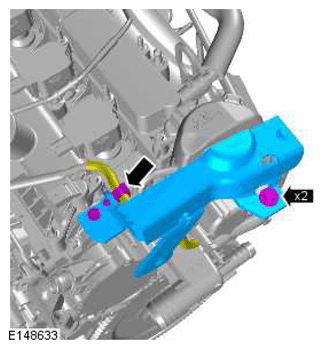

NOTE: Install the the bolts finger tight first.
Torque Specifications:
M8 25 Nm
M6 11 Nm
- Refer to Battery Disconnect and Connect (General Procedures).
