Upshift Paddle Switch (G1006281): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

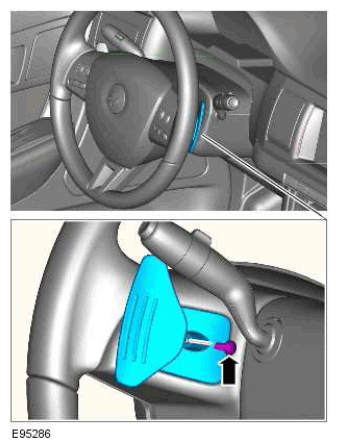

  1. G11423714

    Torque Specification: 3 Nm

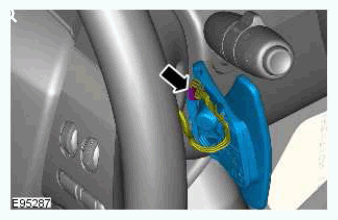

  2. G11423715
