Transmission Control Switch (G979431): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. Refer to: Audio and Climate Control Assembly (415-01 Information and Entertainment System, Removal and Installation).

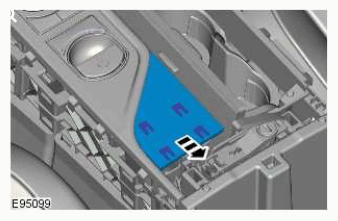

  3. G11423695

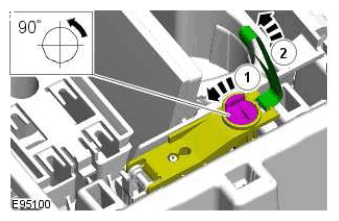

  4. G11423696

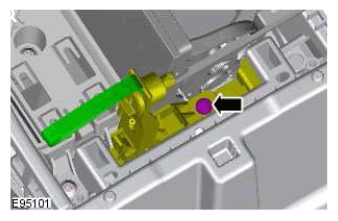

  5. G11423697

    Torque Specification: 4 Nm

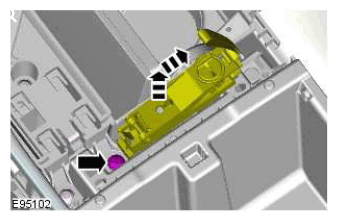

  6. G11423698

    Torque Specification: 4 Nm

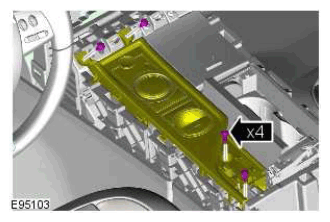

  7. G11423699

    Torque Specification: 4 Nm

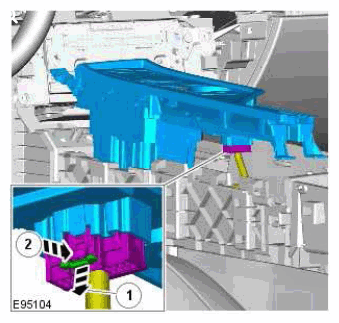

  8. G11423700
