Emergency Park Position Release Lever (G1005916): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR, 2014 Jaguar XF, and 2013 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).
  3. Refer to: Engine Rear Undershield (501-02 Front End Body Panels, Removal and Installation).
  4. Refer to: Floor Console Side Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).
  5. WARNING: Make sure to support the vehicle with axle stands.

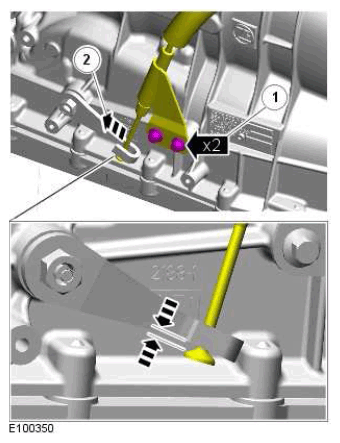

    G11423705

    Torque Specification: 11 Nm

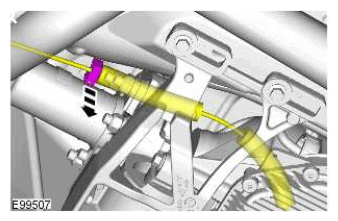

  6. G11423706

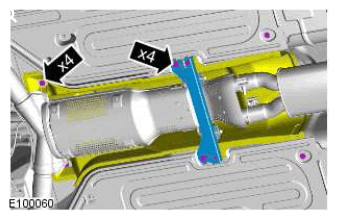

  7. G11423707

    Torque Specification: 7 Nm

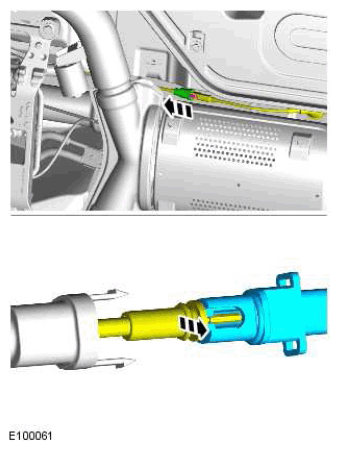

  8. G11423708

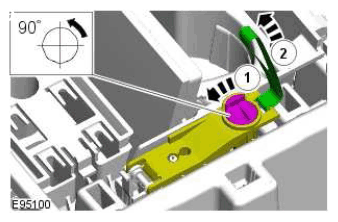

  9. G11423709

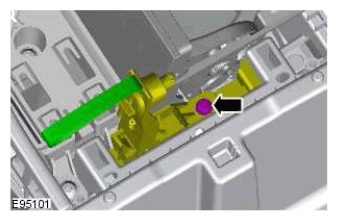

  10. G11423710

    Torque Specification: 3 Nm

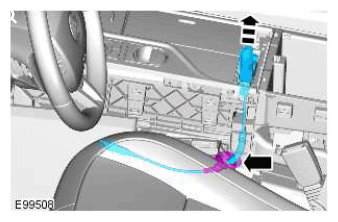

  11. G11423711
